SKU: TBS-DS-08B-17

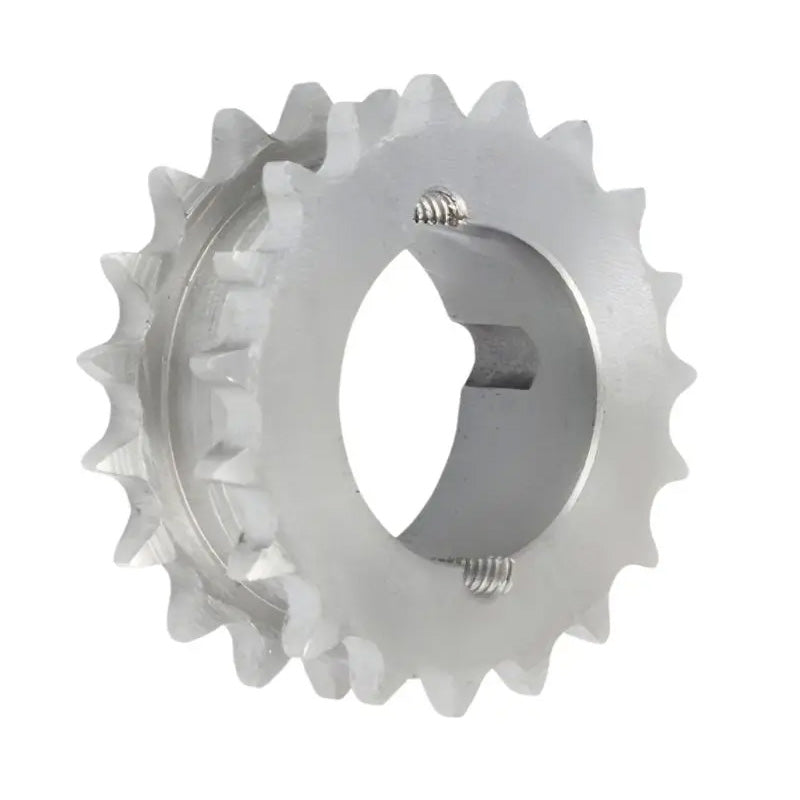

17 Tooth 08B Tapered Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
17 Tooth 08B Tapered Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
Regular price
CHF 12.91
ex VAT
Regular price
Sale price
CHF 12.91
ex VAT
Equivalent to: 671-009 DS08B1-17TB
In stock
Price Break
10+
CHF 11.49
19+
CHF 10.84
29+
CHF 10.72
39+
CHF 10.59
49+
CHF 10.46
74+
CHF 10.33
99+
CHF 9.68
199+
CHF 9.55
249+
CHF 9.42
499+
CHF 9.30
999+
CHF 9.04
Couldn't load pickup availability
Share this product
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-009 DS08B1-17TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-009 DS08B1-17TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 17
- Chain Pitch:
- 12.7mm = 0.5 (1/2) inch
- Item Type:
- BS European Standard
Technical
Technical

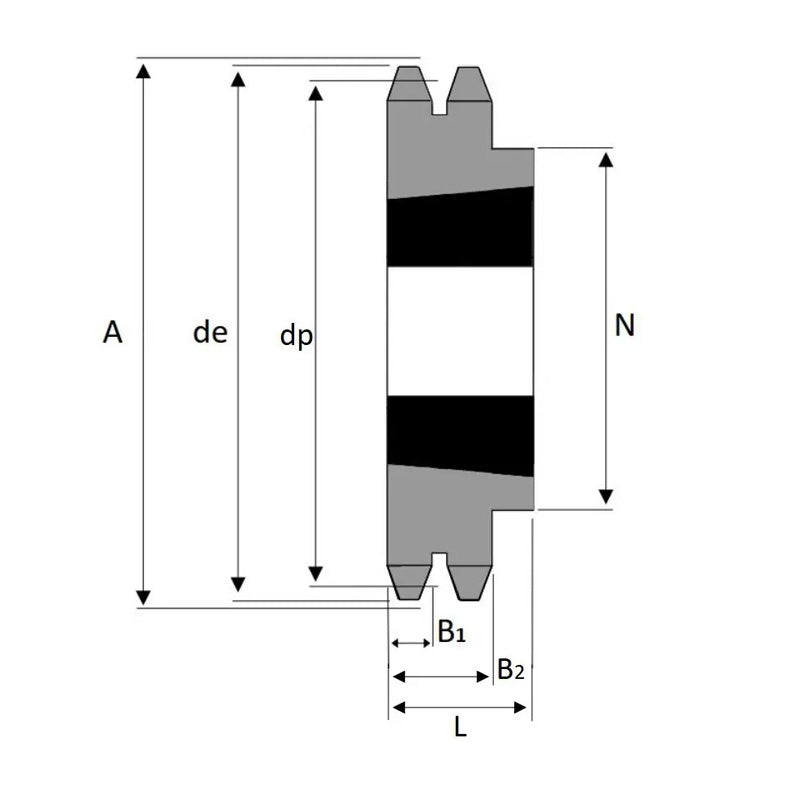

| No. of Teeth | 17 |
|---|---|
| Pitch Diameter dp | 69.11mm |
| Outer Diameter de | 73.6mm |
| Hub Diameter N | 53mm |
| Width B | 31mm |
| Chamfer C | 1.3mm |
| Tooth Radius r3 | 13mm |
| Tooth Width b1 | 7.2mm |
| Taper Bush Series | 1108 |
| Weight | 0.273 kg |
