SKU: TBS-DS-10B-25
25 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
25 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
Regular price
CHF 37.70
ex VAT
Regular price
Sale price
CHF 37.70
ex VAT
Equivalent to: 671-027 DS10B1-25TB
In stock
Price Break
10+
CHF 33.55
19+
CHF 31.67
29+
CHF 31.29
39+
CHF 30.91
49+
CHF 30.54
74+
CHF 30.16
99+
CHF 28.28
199+
CHF 27.90
249+
CHF 27.52
499+
CHF 27.14
999+
CHF 26.39
Couldn't load pickup availability
Description
Description

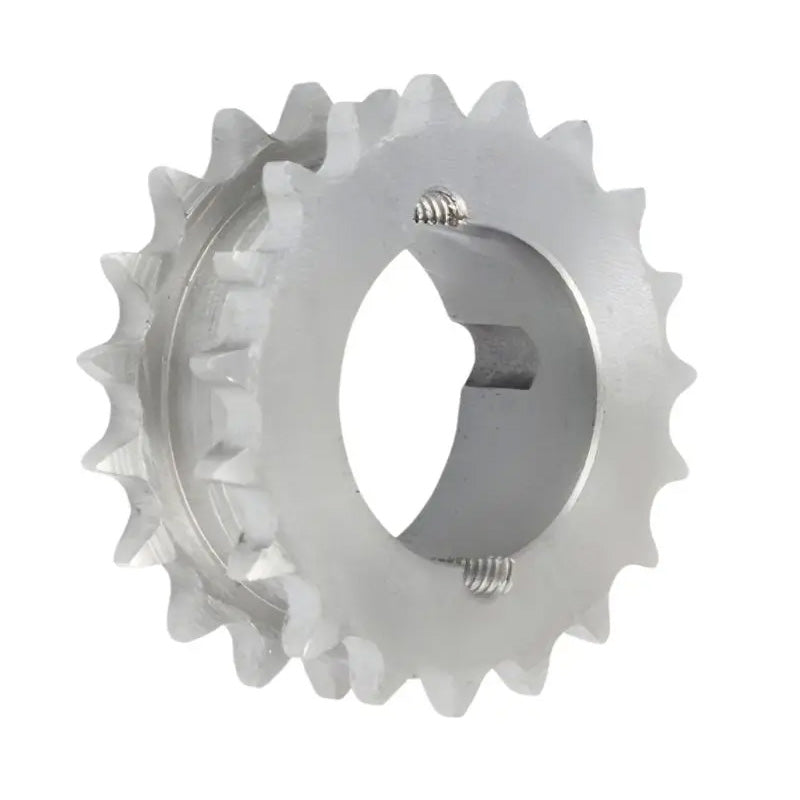

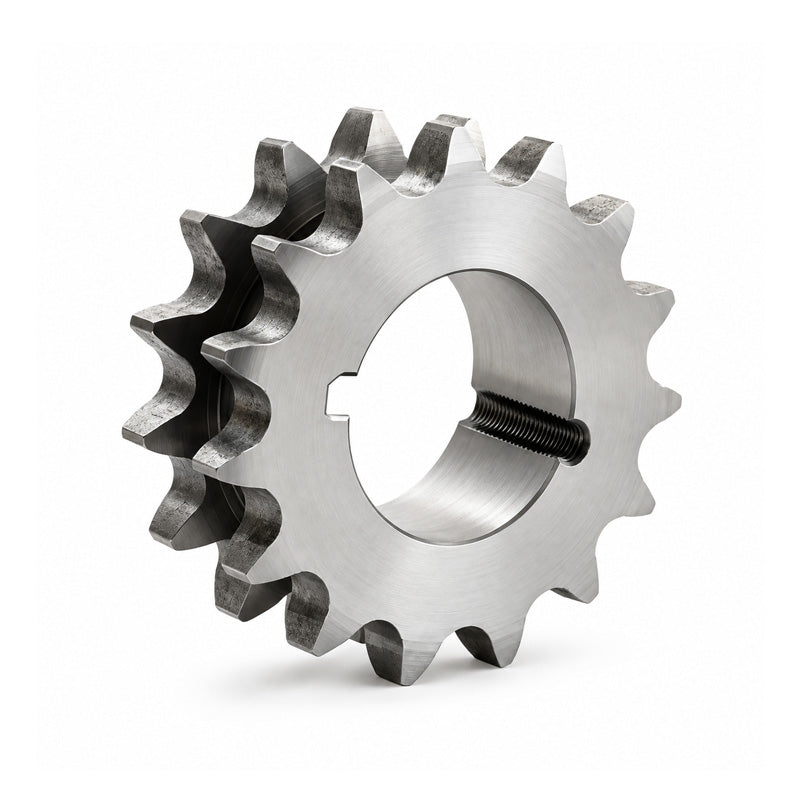

Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-027 DS10B1-25TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-027 DS10B1-25TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 25
- Pitch:
- 15.88mm = 0.625 (5/8) inch
- Item Type:
- BS European Standard
Technical
Technical

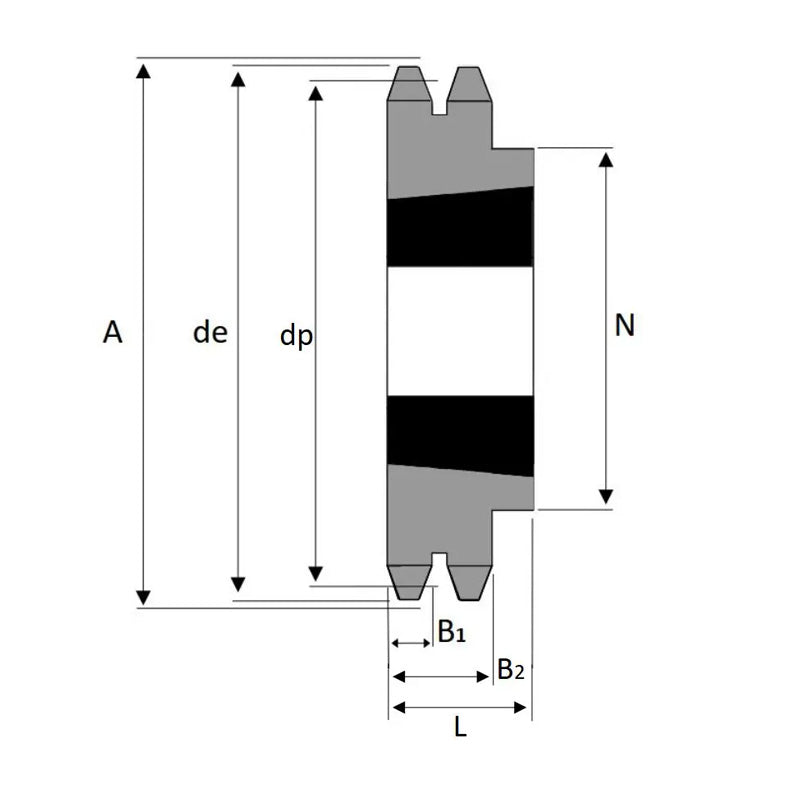

| No. of Teeth | 25 |
|---|---|
| Pitch Diameter dp | 126.66mm |
| Outer Diameter de | 134mm |
| Hub Diameter N | 110mm |
| Width B | 36.5mm |
| Chamfer C | 1.6mm |
| Tooth Radius r3 | 16mm |
| Tooth Width b1 | 9.2mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=2012+taperlock">2012<span style="color:blue"> Click Here</span></a> |
| Weight | 1.54 kg |
