SKU: TCJ35-XL-N-INA

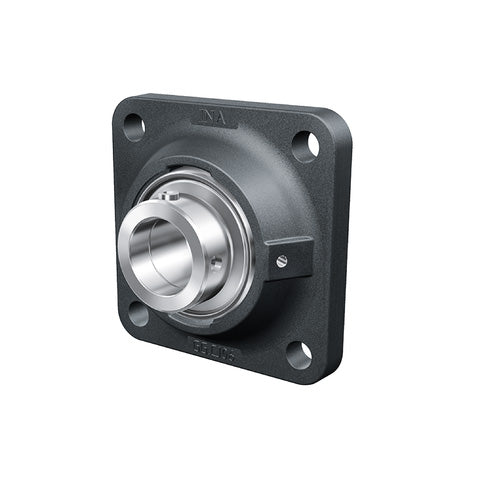

INA TCJ35XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 35mm Bore
INA TCJ35XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 35mm Bore
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
4+
CHF 59.21
9+
CHF 55.89
19+
CHF 55.22
29+
CHF 54.55
39+
CHF 53.89
49+
CHF 53.22
59+
CHF 49.90
69+
CHF 49.23
79+
CHF 48.57
89+
CHF 47.90
99+
CHF 46.57
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- TCJ
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 35mm |
|---|---|
| L | 118mm |
| U | 53.5mm |
| A | 30.5mm |
| A1 | 12.5mm |
| A2 | 21mm |
| B1 | 51.3mm |
| d3 max | 55mm |
| J | 92mm |
| N | 14mm |
| Q | M6 |
| V | 100mm |
| Mass | 1.54 kg |
| Basic dynamic load rating Cr | 27500 N |
| Basic static load rating Cor | 15300 N |
| Designation of housing | CJ07 |
| Designation of bearing | GE35-XL-KTT-BBearing end cap, closed design (to be ordered separately) |
| KASK07 | N/A |
