SKU: TCJ40-XL-N-INA

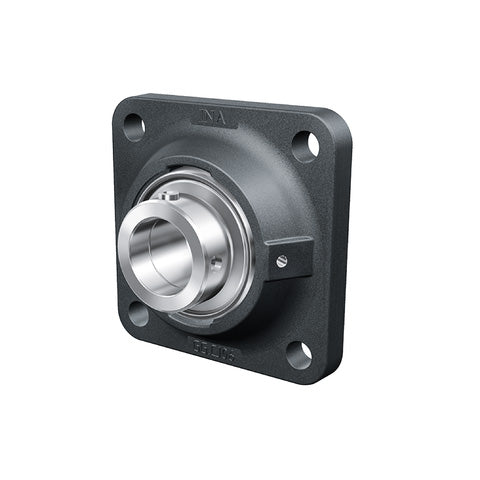

INA TCJ40XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 40mm Bore
INA TCJ40XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 40mm Bore
Regular price
CHF 108.00
ex VAT
Regular price
Sale price
CHF 108.00
ex VAT
In stock
Price Break
4+
CHF 85.37
9+
CHF 80.57
19+
CHF 79.61
29+
CHF 78.65
39+
CHF 77.70
49+
CHF 76.74
59+
CHF 71.94
69+
CHF 70.98
79+
CHF 70.02
89+
CHF 69.06
99+
CHF 67.14
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Style:
- TCJ
- Bolt Hole Centres:
- 101.5mm
Technical
Technical
| d | 40mm |
|---|---|
| L | 130mm |
| U | 59.1mm |
| A | 34.5mm |
| A1 | 13mm |
| A2 | 24mm |
| B1 | 56.5mm |
| d3 max | 58mm |
| J | 101.5mm |
| N | 14mm |
| Q | M6 |
| V | 110mm |
| Mass | 2.02 kg |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 19800 N |
| Designation of housing | CJ08 |
| Designation of bearing | GE40-XL-KTT-BBearing end cap, closed design (to be ordered separately) |
| KASK08 | N/A |
