SKU: TCJ75-XL-INA

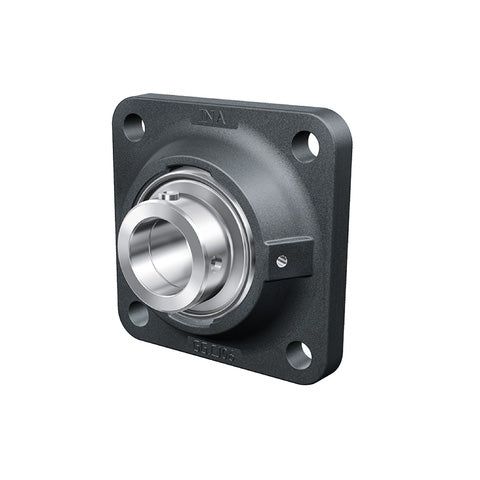

INA TCJ75XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 75mm Bore
INA TCJ75XL Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 75mm Bore
Regular price
CHF 391.00
ex VAT
Regular price
Sale price
CHF 391.00
ex VAT
In stock
Price Break
4+
CHF 311.21
9+
CHF 293.72
19+
CHF 290.23
29+
CHF 286.73
39+
CHF 283.23
49+
CHF 279.74
59+
CHF 262.25
69+
CHF 258.76
79+
CHF 255.26
89+
CHF 251.76
99+
CHF 244.77
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 75mm
- Style:
- TCJ
- Bolt Hole Centres:
- 153mm

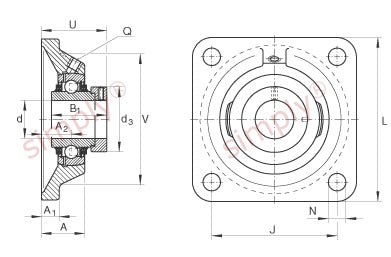

Technical
Technical
| d | 75mm |
|---|---|
| L | 197mm |
| U | 86.9mm |
| A | 55.8mm |
| A1 | 20mm |
| A2 | 41.3mm |
| B1 | 67mm |
| d3 max | 100mm |
| J | 153mm |
| N | 23mm |
| Q | M6 |
| V | 170mm |
| Mass | 6.5 kg |
| Basic dynamic load rating Cr | 66000 N |
| Basic static load rating Cor | 44500 N |
| Designation of housing | CJ15 |
| Designation of bearing | GE75-XL-KTT-B |
