SKU: TCJT65-214-XL-INA

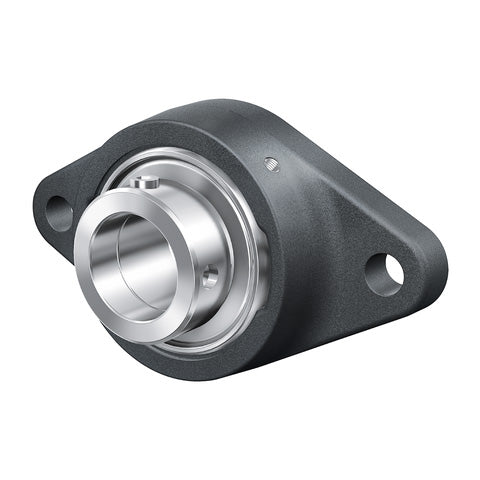

INA TCJT65214XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 65mm Bore
INA TCJT65214XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 65mm Bore
Regular price
CHF 314.51
ex VAT
Regular price
Sale price
CHF 314.51
ex VAT
In stock
Price Break
10+
CHF 279.91
19+
CHF 264.19
29+
CHF 261.04
39+
CHF 257.90
49+
CHF 254.75
74+
CHF 251.61
99+
CHF 235.88
199+
CHF 232.74
249+
CHF 229.59
499+
CHF 226.45
999+
CHF 220.16
Couldn't load pickup availability
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 65mm
- Style:
- TCJT
- Bolt Hole Centres:
- 216mm
Technical
Technical
| d | 65mm |
|---|---|
| H | 258mm |
| U | 82.6mm |
| A | 57mm |
| A1 | 18mm |
| A2 | 38mm |
| B1 | 66mm |
| d3 max | 96mm |
| J | 216mm |
| L | 160mm |
| N | 21mm |
| Q | M6mm |
| V | 160mm |
| Mass | 6.41 kg |
| Basic dynamic load rating Cr | 66000 N |
| Basic static load rating Cor | 44000 N |
| Designation of housing | CJT13/14 |
| Designation of bearing | GE65-214-XL-KTT-B |
