SKU: TEN-ARM-SE18-DUN

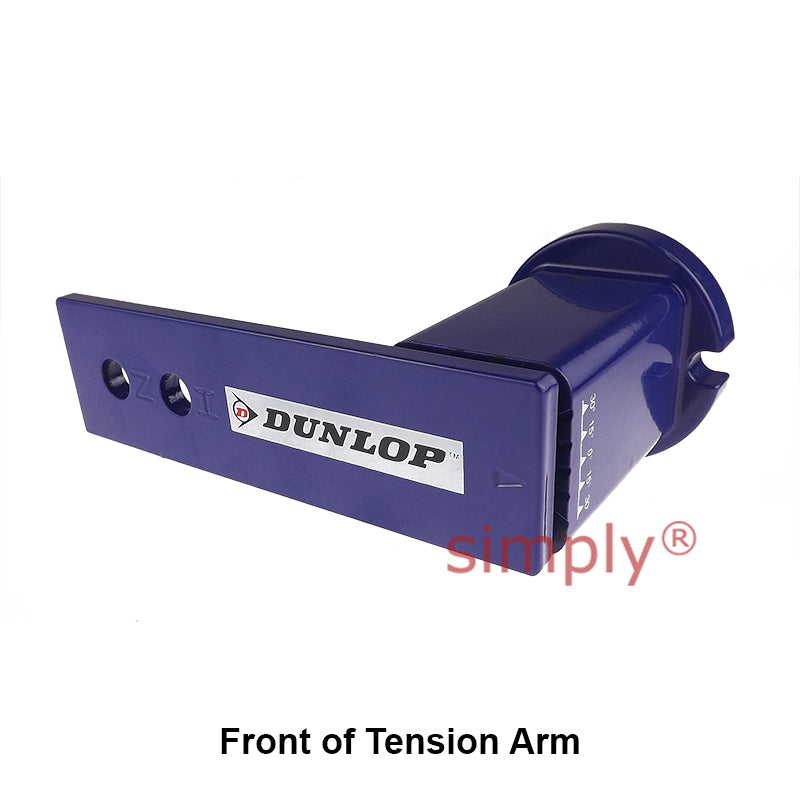

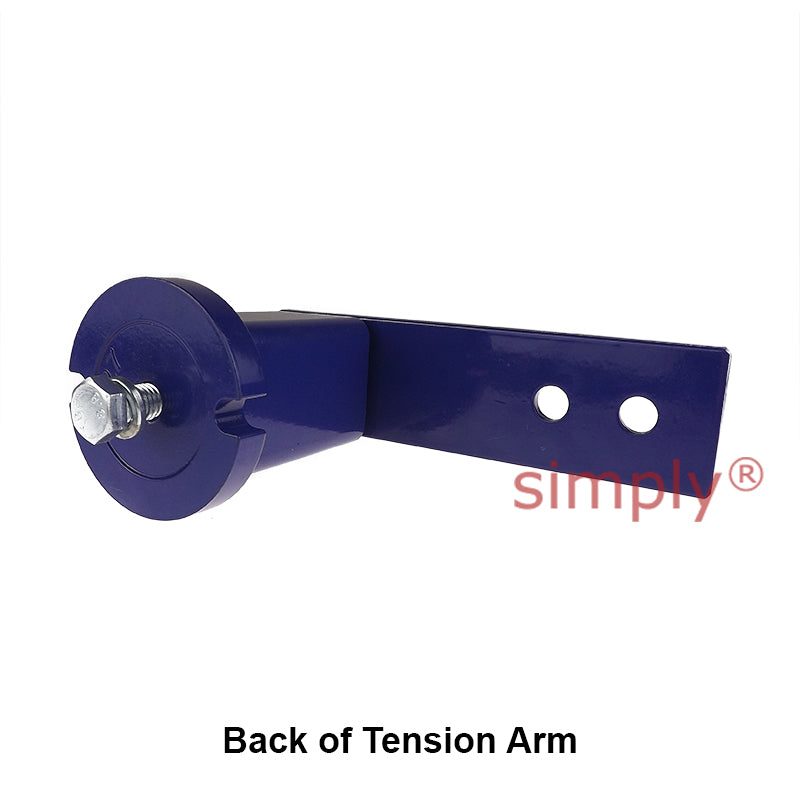

Dunlop SE18 Chain and V-Belt Tension Arm
Dunlop SE18 Chain and V-Belt Tension Arm
Regular price
CHF 32.00
ex VAT
Regular price
Sale price
CHF 32.00
ex VAT
In stock
Price Break
3+
CHF 25.49
5+
CHF 24.06
9+
CHF 23.77
19+
CHF 23.49
49+
CHF 23.20
74+
CHF 22.91
99+
CHF 21.48
199+
CHF 21.19
249+
CHF 20.91
499+
CHF 20.62
999+
CHF 20.05
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M10
- Part No:
- SE18
Technical
Technical
| Part No. | SE18 |
|---|---|
| D | 58mm |
| E | 79 (+1.5/-0.5)mm |
| G | 7mm |
| H | M10 |
| J<sup>1</sup> | 100mm |
| J<sup>2</sup> | 100mm |
| K | 30mm |
| L | 115mm |
| M | 30mm |
| N | 35mm |
| O | 10.5mm |
| P | 8.5mm |
| T | 10.5mm |
| U | 25.3mm |
