SKU: TEN-ARM-SE38-DUN

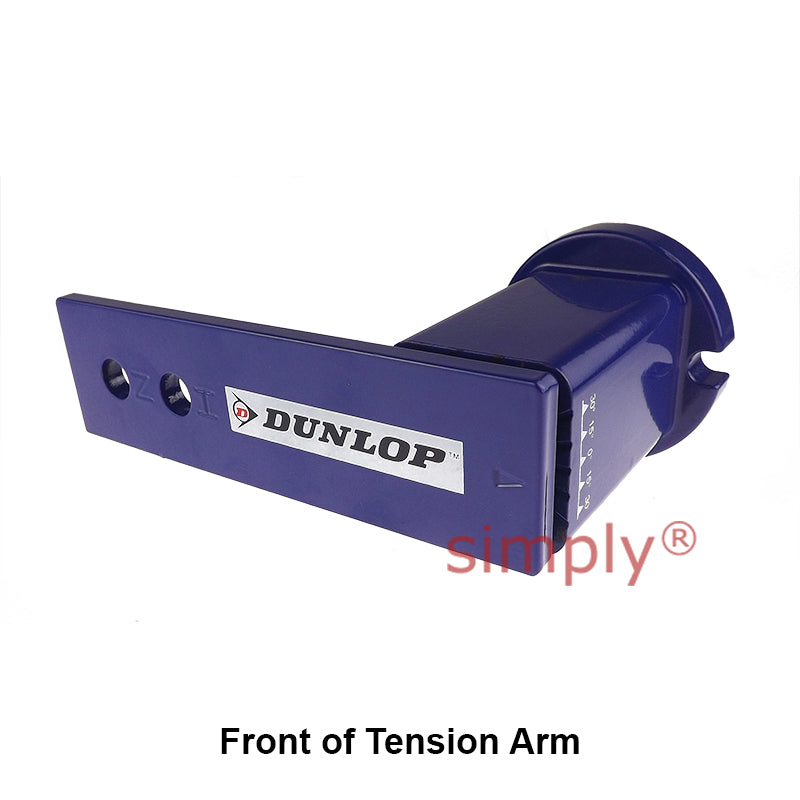

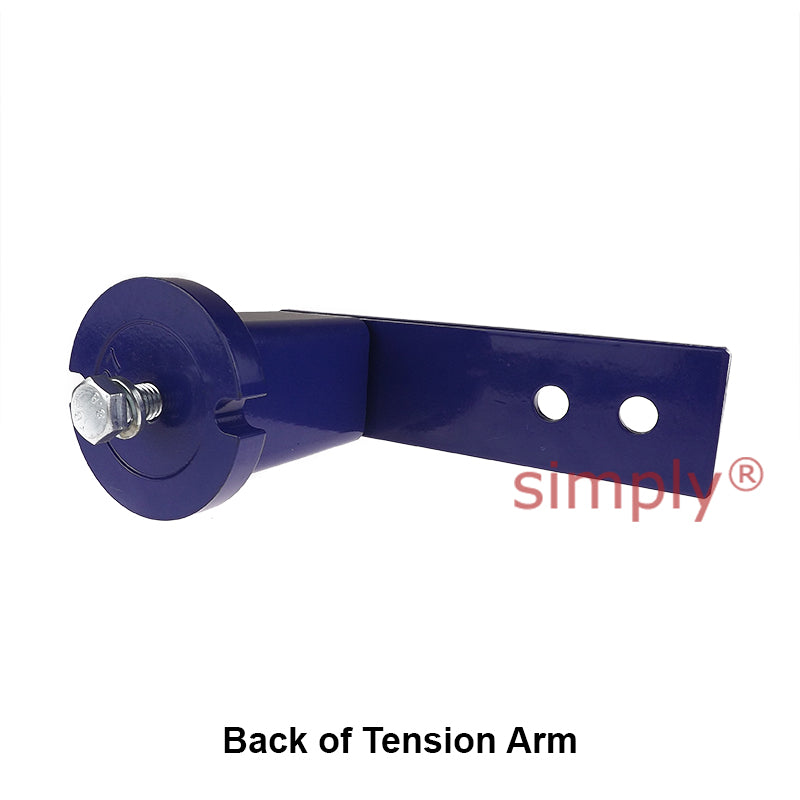

Dunlop SE38 Chain and V-Belt Tension Arm
Dunlop SE38 Chain and V-Belt Tension Arm
Regular price
CHF 83.14
ex VAT
Regular price
Sale price
CHF 83.14
ex VAT
In stock
Price Break
10+
CHF 73.99
19+
CHF 69.84
29+
CHF 69.01
39+
CHF 68.17
49+
CHF 67.34
74+
CHF 66.51
99+
CHF 62.36
199+
CHF 61.52
249+
CHF 60.69
499+
CHF 59.86
999+
CHF 58.20
Couldn't load pickup availability
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M16
- Part No:
- SE38
Technical
Technical
| Part No. | SE38 |
|---|---|
| D | 95mm |
| E | 140 (+2/-0.5)mm |
| G | 10mm |
| H | M16 |
| J<sup>1</sup> | 175mm |
| J<sup>2</sup> | 175mm |
| K | 60mm |
| L | 205mm |
| M | 40mm |
| N | 66mm |
| O | 15mm |
| P | 12.5mm |
| T | 20.5mm |
| U | 42mm |
