SKU: TIH030M/230V-SKF

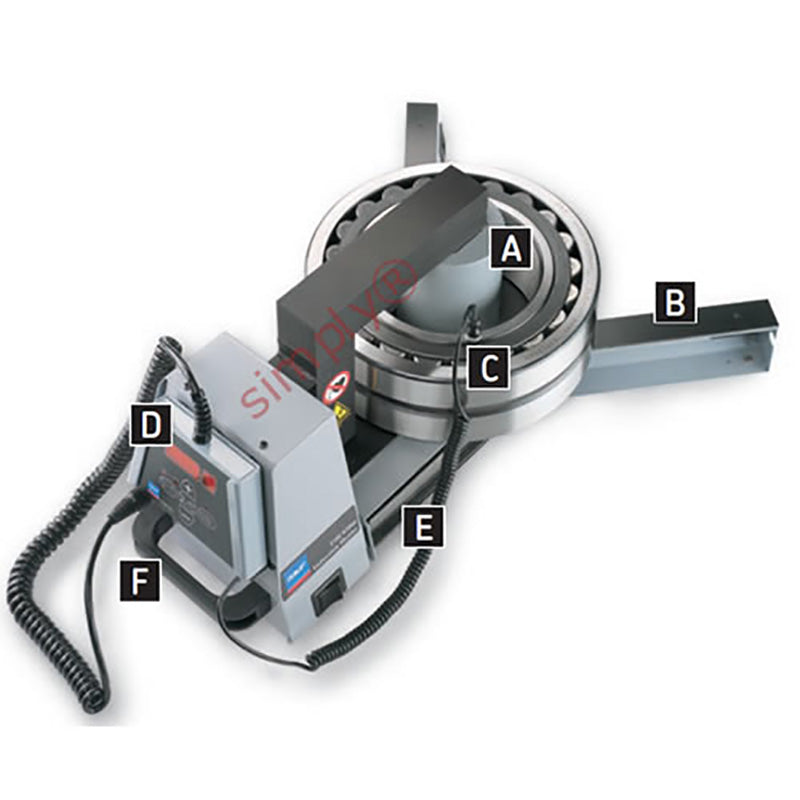

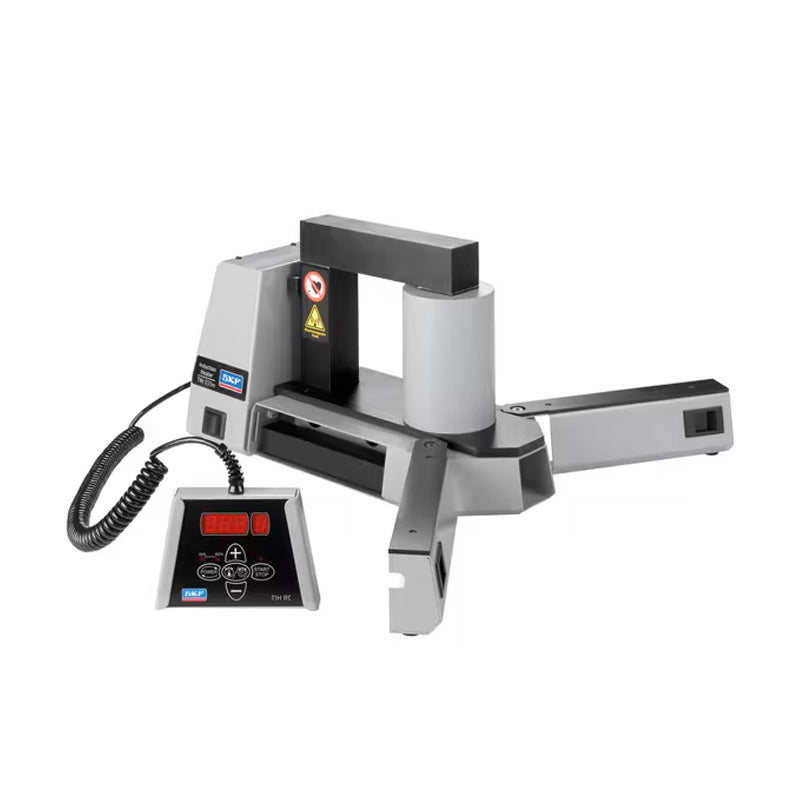

SKF TIH030M/230V High Frequency Portable Induction Bearing Heater for up to 40kg
SKF TIH030M/230V High Frequency Portable Induction Bearing Heater for up to 40kg
Regular price
CHF 2,531.00
ex VAT
Regular price
Sale price
CHF 2,531.00
ex VAT
In stock
Price Break
10+
CHF 2,017.50
19+
CHF 1,904.15
29+
CHF 1,881.49
39+
CHF 1,858.82
49+
CHF 1,836.15
74+
CHF 1,813.48
99+
CHF 1,700.14
199+
CHF 1,677.47
249+
CHF 1,654.80
499+
CHF 1,632.13
999+
CHF 1,586.80
Share this product
Description
Description
|
SKF TIH030M Small Bearing Heater: With a high heating capacity of up to 40 kg bearings the new SKF small induction heater TIH 030m combines high heating capacity with portability. The compact lightweight design makes the TIH 030m portable. Placing the induction coil outside the heater’s housing allows the heating of bearings weighing up to 40 kg (88 lb). The heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 030m is equipped with a time mode for heating components other than bearings. The heater is supplied standard with three yokes and is available in two version: 220/240V/50-60Hz and 100-110V/50-60Hz. Units are supplied without a plug. SKF m20 concept m20 represents the weight(kg)of the heaviest Spherical Roller Bearing 231 bearing which can be heated from 20 to 110 °C (68 to 230 °F) in 20 minutes. This defines the heater’s power output instead of its power consumption. Benefits: Compact, lightweight , efficient. Note: This is a 220-240 Volt Heater |
- Brand / Quality:
- SKF - High Quality
- Size:
- Up to: 40kg
