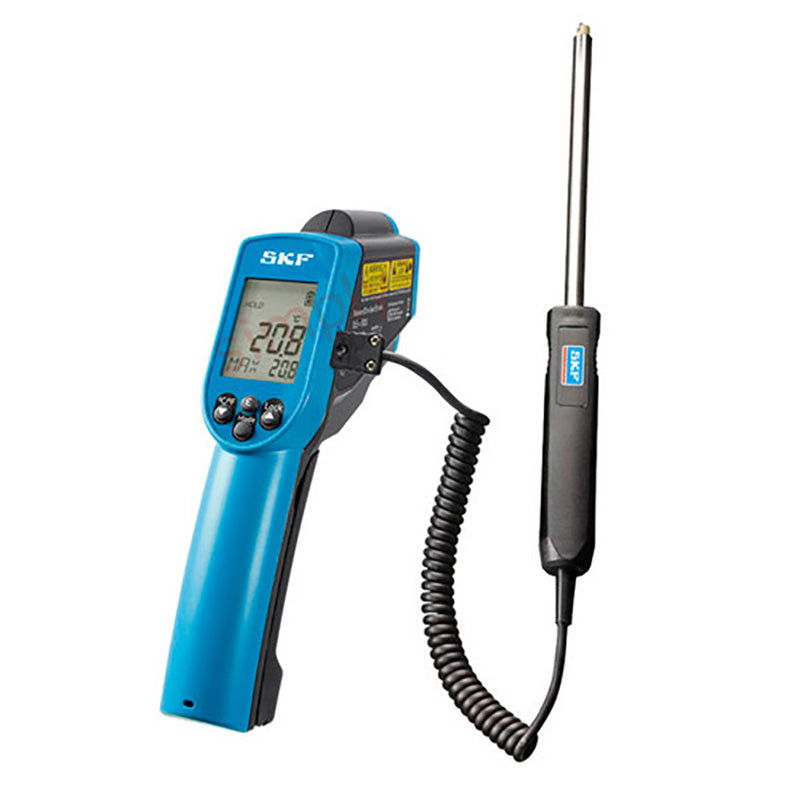

SKF TKTL 31 Infrared Contact Thermometer with Dual Laser Sighting
SKF TKTL 31 Infrared Contact Thermometer with Dual Laser Sighting
Regular price
CHF 568.00
ex VAT
Regular price
Sale price
CHF 568.00
ex VAT
Equivalent to: TKTL30-SKF
In stock
Price Break
10+
CHF 451.56
19+
CHF 426.19
29+
CHF 421.11
39+
CHF 416.04
49+
CHF 410.97
74+
CHF 405.89
99+
CHF 380.52
199+
CHF 375.45
249+
CHF 370.38
499+
CHF 365.30
999+
CHF 355.16
Share this product
Description
Description
|
SKF TKTL31 Infrared and Contact Thermometer: A contact and non contact infrared thermometer with a wide measurement range and dual laser sighting. Wide infrared temperature measurement range from –60 to +1 000c. Contact temperature measurement range from –64 to +1 400c. Dual laser sighting feature defines the diameter of the area being measured; helps the user to precisely pin-point the temperature measurement area. Distance-to-spot ratio of 50:1; allows accurate temperature readings at long distances or for measuring temperatures of small areas. User selectable variable emissivity between 0,1 and 1,0; allows most surface temperatures to be measured. User selectable, multiple temperature measurement modes including: maximum, minimum, average, differential and probe/infrared dual display, scan function. User selectable high and level alarm levels with audible warning signal. Mode dependant auto shut off feature optimises battery life. Note: Supplied with temperature probe TMDT 2-30 (max. 900c/ 1 652 F); suitable for many direct contact applications |
Equivalent: TKTL30-SKF
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Description | Infrared digital thermometer |
|---|---|
| Temperature range using infrared | -60 to +1 000 c(-76 to +1 832 F) |
| Temperature range using probe | -64 to +1 400 c(-83 to +1 999 F) |
| Probe supplied | TMDT 2-30, suitable for use up to 900 c(1 650 F) |
| Environmental limits | Operation 0 to 50 c(32 to 120 F) 10 to 95% R.H. |
| Storage | -20 to 65 c(-4 to 150 F) 10 to 95% R.H. |
| Response time 90% | <1 000 ms |
| Display | LCD |
| Displayed resolution | 0,1 c/F from -9.9~199.9, otherwise 1 c/F |
| Distance to spot size | 50:1 |
| Spectral response | 8-14 |
| Emissivity | 0,1-1,0 |
| User selectable back lit display | On/Off |
| User selectable laser pointer | On/Off |
| Measurement modes | Max, min, average, differential, probe/IR dual temperature modes |
| Alarm modes | High and low level alarm level with warning bleep |
| Laser wavelength | 630-650 nm |
| Laser | Class 2 |
| Maximum laser power | 1 mW |
| Battery | 2 x AAA Alkaline type IEC LR03 |
| Battery lifetime | 140 hours with laser and back light off. Otherwise 18 hours |
| Switch off | IR mode automatic after 60 s after trigger is released (60 min can be manually selected) Probe mode automatic after 12 min |
| EMC standards | EMC 2004/108/EC |
