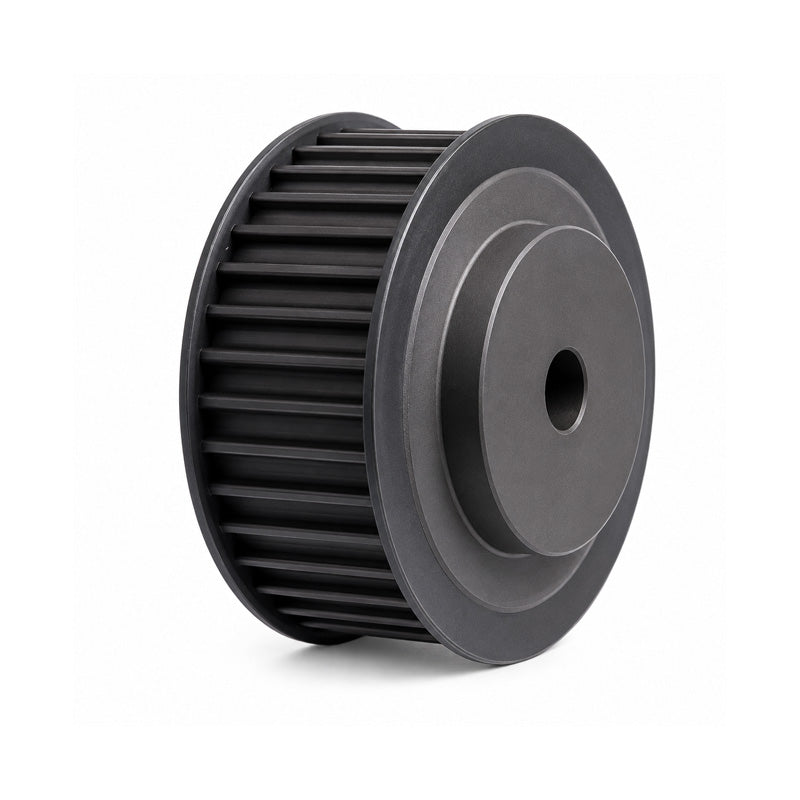

TL48-H-200F - 1/2 inch Pitch 48 Tooth Flanged Tapered Bore Steel Timing Pulley for 2 inch Wide Belts
TL48-H-200F - 1/2 inch Pitch 48 Tooth Flanged Tapered Bore Steel Timing Pulley for 2 inch Wide Belts
Regular price
CHF 81.93
ex VAT
Regular price
Sale price
CHF 81.93
ex VAT
Equivalent to: TL48H200F
In stock
Price Break
10+
CHF 72.92
19+
CHF 68.82
29+
CHF 68.00
39+
CHF 67.18
49+
CHF 66.36
74+
CHF 65.54
99+
CHF 61.45
199+
CHF 60.63
249+
CHF 59.81
499+
CHF 58.99
999+
CHF 57.35
Couldn't load pickup availability
Description
Description
Imperial Taper Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Equivalent: TL48H200F
- Brand / Quality:
- Drive-Flex - High Quality
- Teeth:
- 48
- Material:
- Steel
- Belt Width Approx:
- 50.8mm = 2 inch
- Pitch:
- 12.7mm = 0.5 (1/2) inch
- Item Type:
- Flanged Tapered Bore Pulley
Technical
Technical
| No. teeth | 48 |
|---|---|
| Dp | 194.04mm |
| De | 192.67mm |
| Df | 200mm |
| Dm | 119mm |
| F | 58mm |
| No. flanges | 2 |
| Material | Steel |
| Bore | Tapered Bore |
| Belt Width | 50.8mm = 2 inch |
| Pitch | 12.7mm = 0.5 (1/2) inch |
| S | 45mm |
| R | 13mm |
| Di | 168mm |
| Bush | 2517 |
