SKU: TL96-L-100

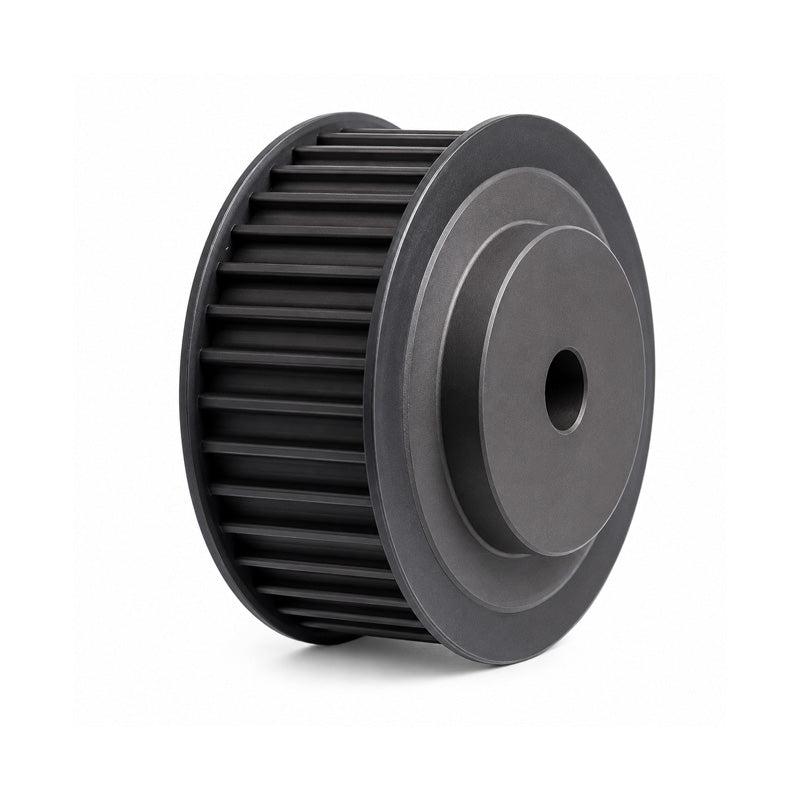

TL96-L-100 - 3/8 inch Pitch 96 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts
TL96-L-100 - 3/8 inch Pitch 96 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts
Regular price
CHF 85.00
ex VAT
Regular price
Sale price
CHF 85.00
ex VAT
Equivalent to: TL96L100
In stock
Price Break
3+
CHF 67.47
5+
CHF 63.68
9+
CHF 62.92
19+
CHF 62.16
49+
CHF 61.41
74+
CHF 60.65
99+
CHF 56.86
199+
CHF 56.10
249+
CHF 55.34
499+
CHF 54.58
999+
CHF 53.07
Description
Description
Imperial Taper Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Equivalent: TL96L100
- Brand / Quality:
- Drive-Flex - High Quality
- Teeth:
- 96
- Material:
- Cast Iron
- Belt Width Approx:
- 25.4mm = 1 inch
- Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- Flangeless Tapered Bore Pulley
Technical
Technical
| No. teeth | 96 |
|---|---|
| Dp | 291.06mm |
| De | 290.3mm |
| Dm | 106mm |
| F | 32mm |
| Material | Cast Iron |
| Bore | Tapered Bore |
| Belt Width | 25.4mm = 1 inch |
| Pitch | 9.53mm = 0.375 (3/8) inch |
| S | 32mm |
| Di | 270mm |
| Bush | 2012 |
