SKU: TLA.2030.Z

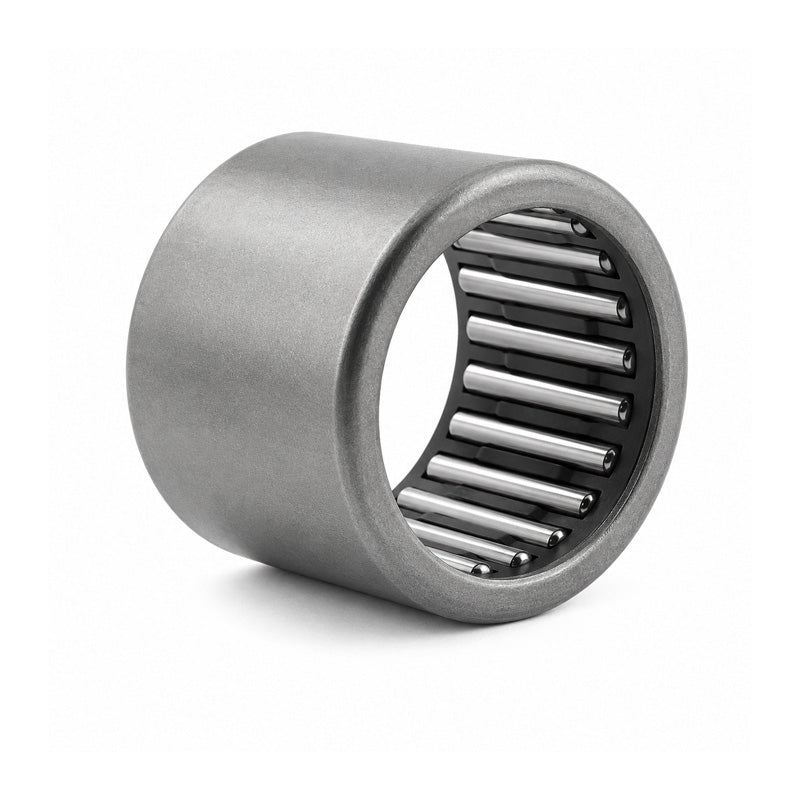

TLA2030Z Drawn Cup Type Needle Roller Bearing With Two Open Ends 20x26x30mm
TLA2030Z Drawn Cup Type Needle Roller Bearing With Two Open Ends 20x26x30mm
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: HK2030
In stock
Price Break
10+
CHF 4.51
20+
CHF 4.25
30+
CHF 4.20
40+
CHF 4.15
50+
CHF 4.10
75+
CHF 4.05
100+
CHF 3.80
200+
CHF 3.75
250+
CHF 3.70
500+
CHF 3.65
1000+
CHF 3.54
Description
Description
|
IKO Shell Type Needle Roller Bearings: Shell Type Needle Roller Bearings are lightweight with the lowest sectional height among needle roller bearings with outer ring, because they employ a shell type outer ring made from a thin special-steel plate which is accurately drawn, carburized and quenched.Since these bearings are press-fitted into the housing, no axial positioning fixtures are required. They are ideal for use in mass-produced articles that require economy. |
Equivalent: HK2030
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 30mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 30mm |
| Dynamic Load Cor | 22300 N |
| Static Load Cr | 42900 N |
| Weight | 0.033 kg |
