SKU: TMBS100E-SKF

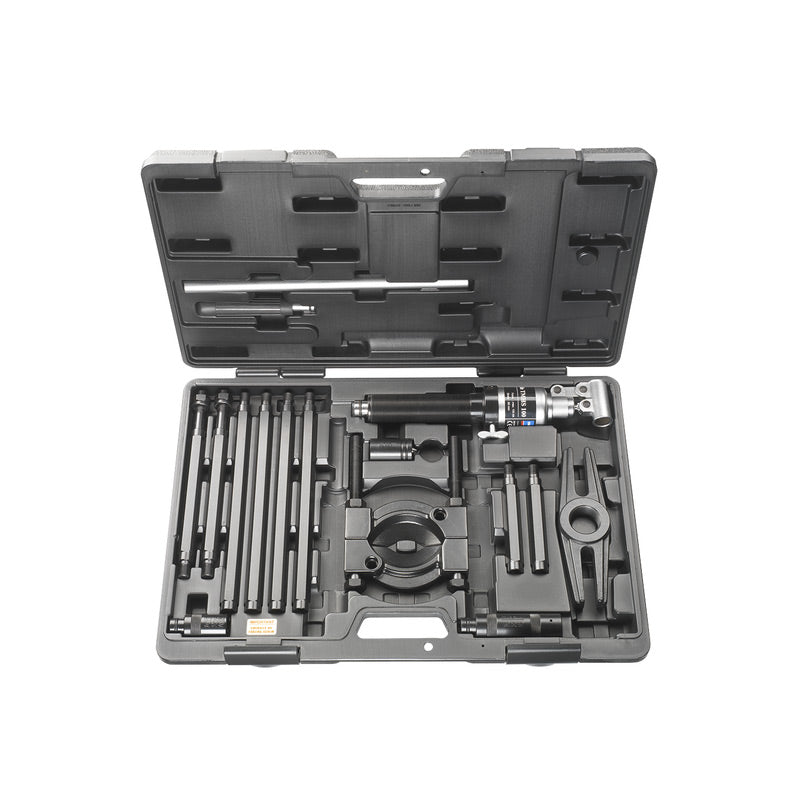

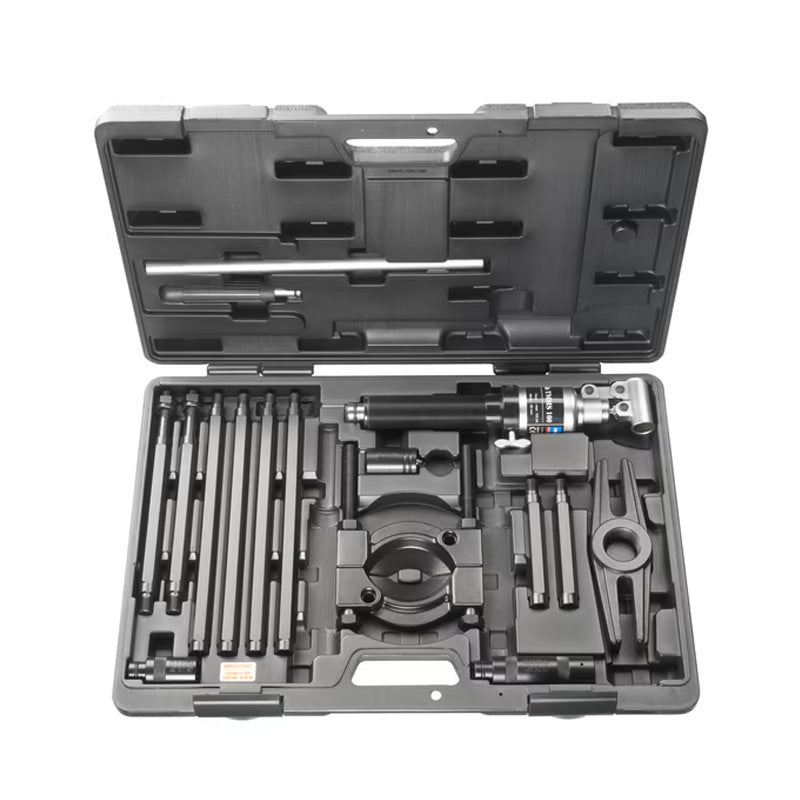

SKF TMBS100E Strong Back Puller 20-100mm Shaft Diameter Range
SKF TMBS100E Strong Back Puller 20-100mm Shaft Diameter Range
Regular price
CHF 715.41
ex VAT
Regular price
Sale price
CHF 715.41
ex VAT
In stock
Price Break
10+
CHF 636.71
19+
CHF 600.94
29+
CHF 593.79
39+
CHF 586.64
49+
CHF 579.48
74+
CHF 572.33
99+
CHF 536.56
199+
CHF 529.40
249+
CHF 522.25
499+
CHF 515.10
999+
CHF 500.79
Couldn't load pickup availability
Description
Description
| SKF TMBS Strong Back Puller: The SKF TMBS E strong back pullers facilitate dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or where the application demands a long reach. TMBS 100E and the TMBS 150E bearing extractors are equipped with a hydraulic spindle, which allows for effortless application of force up to 100 kN (11.2 ton US). The TMBS 50E is equipped with a mechanical spindle for force generation. Special bearing separator design allows the puller to be easily inserted between the bearing and the shoulder on the shaft, even in the tightest spaces. The firm grip behind the bearing's inner ring reduces the force required to dismount the bearing. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Separator Set | 1 Piece |
|---|---|
| Main Rods | 2 Pieces |
| Extension Rods, 125mm (4.9 in.) | 2 Pieces |
| Extension Rods, 285mm (11.2 in.) | 4 Pieces |
| Beam | 1 Piece |
| Hydraulic Spindle TMHS100 | 1 Piece |
| Extension Pieces for Hydraulic Spindles 50, 100mm (2.0, 3.9 in.) | 2 Pieces |
| Nose Piece with Centre Point for Hydraulic Spindle | 1 Piece |
| Maximum Stroke | 80mm (3.1 in.) |
| Nominal Working Force | 100 kN (11.2 US ton) |
| Maximum Reach | 120-816mm (4.7-31.1 in.) |
| Shaft Diameter Range | 20-100mm (0.8-4 in.) |
| Threading Hydraulic Cylinder | 1 1/2-16 UN |
| Carrying Case Dimensions | 580 x 410 x 70mm (580x410x70 in.) |
