SKU: TME80-XL-INA
INA TME80XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 80mm Bore
INA TME80XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 80mm Bore
Regular price
CHF 513.00
ex VAT
Regular price
Sale price
CHF 513.00
ex VAT
In stock
Price Break
4+
CHF 407.51
9+
CHF 384.62
19+
CHF 380.04
29+
CHF 375.46
39+
CHF 370.88
49+
CHF 366.30
59+
CHF 343.41
69+
CHF 338.83
79+
CHF 334.25
89+
CHF 329.67
99+
CHF 320.52
Description
Description
|

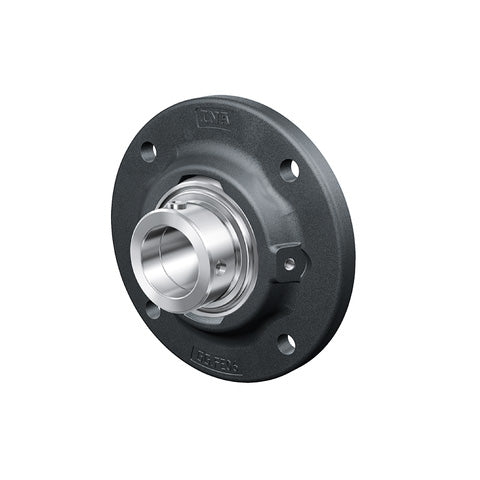

INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, centring spigot, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 80mm
- Style:
- TME
- Pitch Circle Diameter:
- 184mm
Technical
Technical
| d | 80mm |
|---|---|
| H | 220mm |
| B1 | 70.7mm |
| A | 31mm |
| A1 | 18mm |
| A2 | -2mm |
| d3 max | 108mm |
| J | 184 |
| N | 18mm |
| Q | M6 |
| S | 6mm |
| U | 49.3mm |
| Z | 160mm (Tolerance: h8) |
| Mass | 5.51 kg |
| Basic dynamic load rating Cr | 76000 N |
| Basic static load rating Cor | 54000 N |
| Designation of housing | ME16 |
| Designation of bearing | GE80-XL-KTT-B |
