SKU: TMFC45-RHP

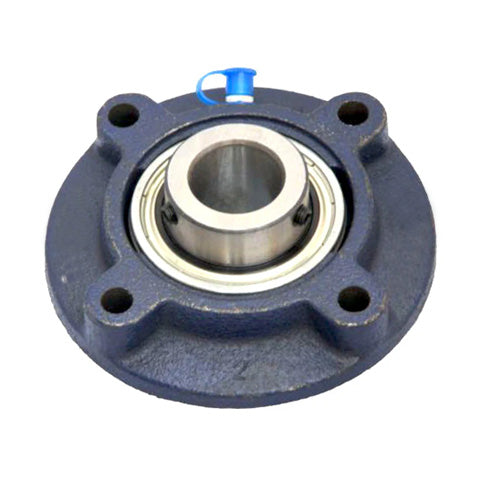

RHP TMFC45 Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP TMFC45 Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
CHF 152.00
ex VAT
Regular price
Sale price
CHF 152.00
ex VAT
In stock
Price Break
10+
CHF 121.01
20+
CHF 114.21
30+
CHF 112.85
40+
CHF 111.49
50+
CHF 110.13
75+
CHF 108.77
100+
CHF 101.97
200+
CHF 100.62
250+
CHF 99.26
500+
CHF 97.90
1000+
CHF 95.18
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- TMFC
- Pitch Circle Diameter:
- 130.18mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155.6mm |
| H | 107.95mm |
| J | 130.18mm |
| G | 10mm |
| A1 | 39.67mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 51.59mm |
| s | 19.1mm |
| d1 | 62.2mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-45G+insonly">1050-45G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
