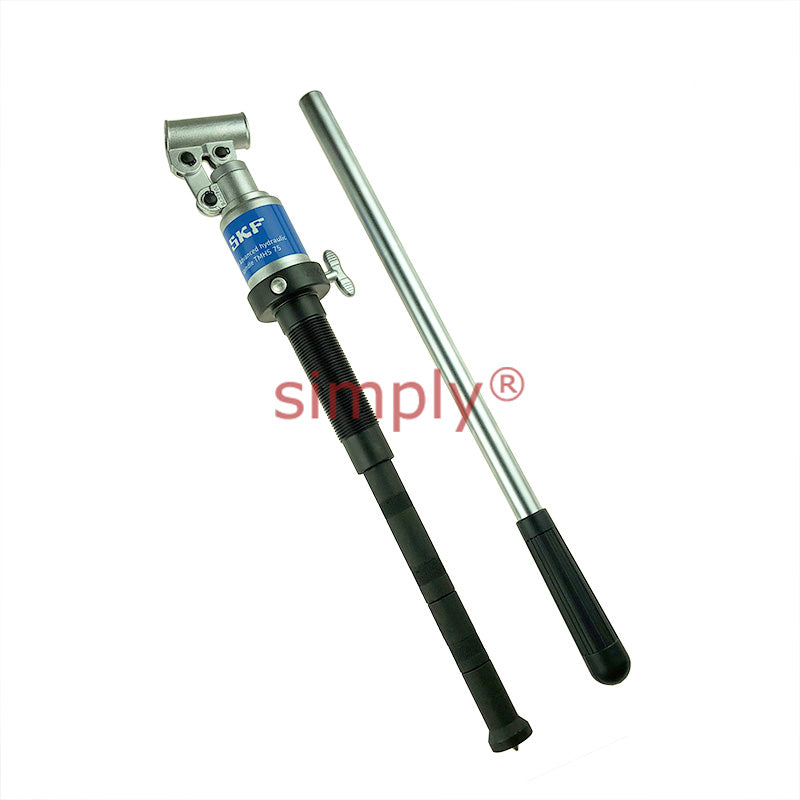

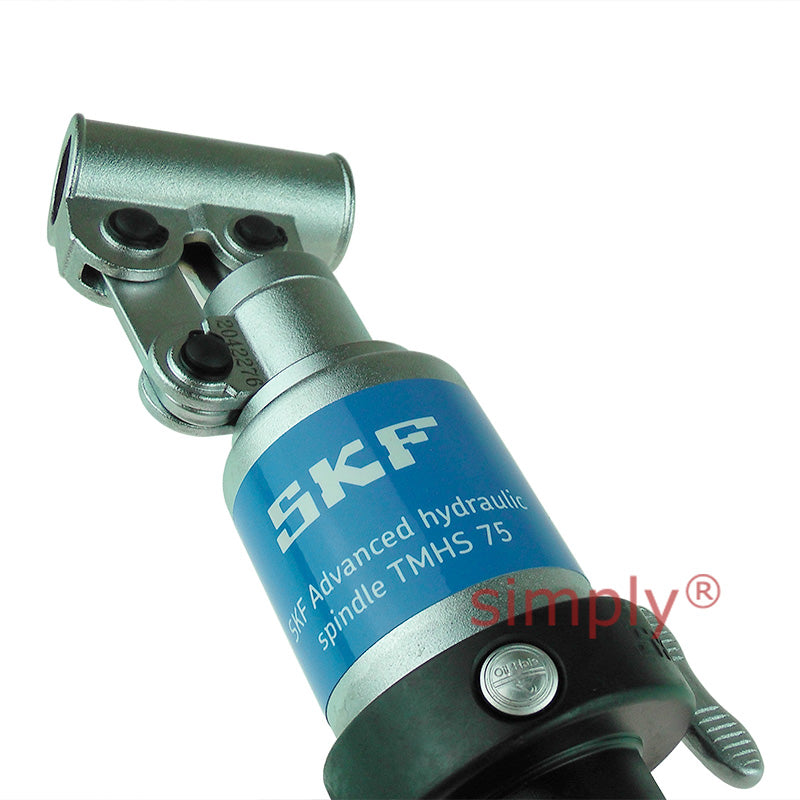

SKF TMHS75 Advanced Hydraulic Spindle 229mm / 9.0 in max. Reach
SKF TMHS75 Advanced Hydraulic Spindle 229mm / 9.0 in max. Reach
Regular price
CHF 496.00
ex VAT
Regular price
Sale price
CHF 496.00
ex VAT
In stock
Price Break
10+
CHF 394.84
19+
CHF 372.66
29+
CHF 368.23
39+
CHF 363.79
49+
CHF 359.35
74+
CHF 354.92
99+
CHF 332.73
199+
CHF 328.30
249+
CHF 323.86
499+
CHF 319.42
999+
CHF 310.55
Share this product
Description
Description
|
SKF Advanced Hydraulic Spindles TMHS Series: The SKF advanced hydraulic spindles generate a high pulling force with very little effort compared to the standard mechanical spindles. They dramatically reduce the time needed to dismount a bearing or other component. The spindles are equipped with integrated hydraulic pumps for force generation. Maximum pulling forces are limited by special safety valves and the hydraulic oil will remain inside the pump. Benefits: Hardened and chrome plated piston with spring return function. Spring-loaded centre point in the nosepiece allows easy centring of the puller on the shaft without damaging shaft centre point. Note: Suitable for use with pullers with a 1 1/4-12 UN thread. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical

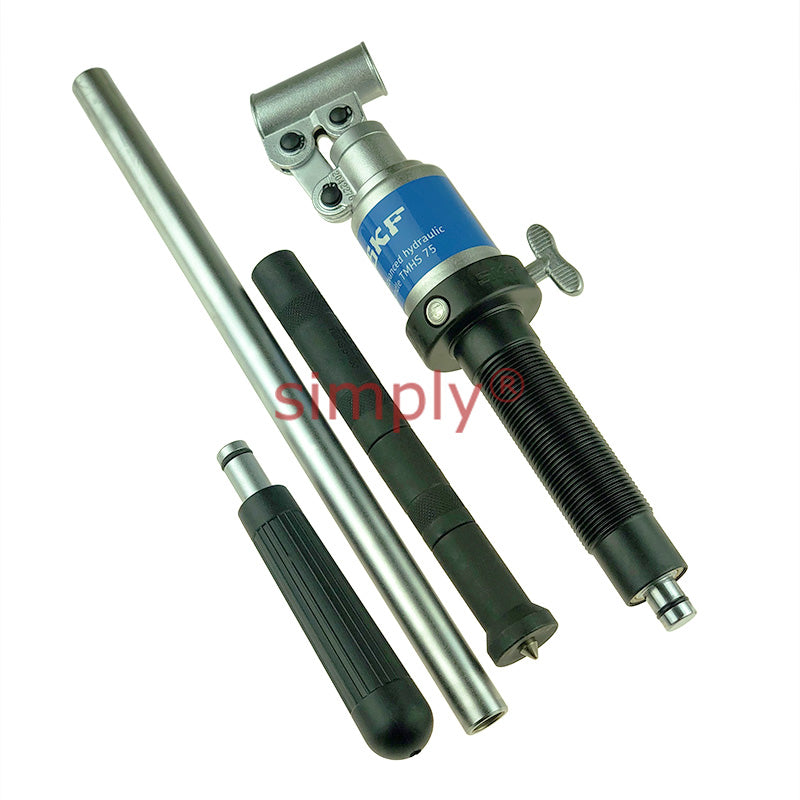

| Hydraulic Spindle | 1 Piece |
|---|---|
| Extension Pieces 50 and 100mm | 2 Pieces |
| Nose Piece | 1 Piece |
| Maximum Withdrawal Force | 75 kN (8.4 US ton) |
| Piston Stroke | 75mm (3.0 in.) |
| Body Thread | 1 1/4-12 UN |
| Nose Piece Diameter | 35mm (1.4 in.) |
| Maximum Reach | 229mm (9.0 in.) |
