• SKF TMMA60 Mechanical EasyPull 36-150mm / 1.4-5.9in
1 1

SKU: TMMA60-SKF

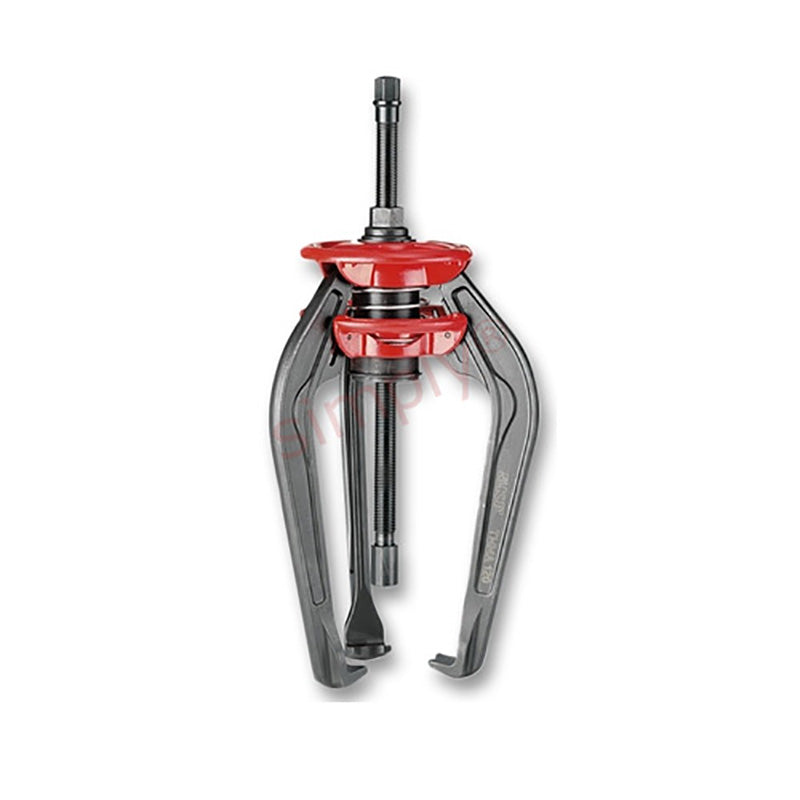

SKF TMMA60 Mechanical EasyPull 36-150mm / 1.4-5.9in

SKF TMMA60 Mechanical EasyPull 36-150mm / 1.4-5.9in
CHF 475.00 ex VAT
CHF 475.00 ex VAT
Sale Sold out

Equivalent to: TMMA3

In stock

Price Break
10+ CHF 378.40
19+ CHF 357.14
29+ CHF 352.89
39+ CHF 348.64
49+ CHF 344.39
74+ CHF 340.13
99+ CHF 318.88
199+ CHF 314.62
249+ CHF 310.37
499+ CHF 306.12
999+ CHF 297.62
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Mechanical EasyPull TMMA Series: Equipped with spring-operated arms and a solid design, SKF's patented EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement. The unique red rings spring-operated opening mechanism allows the EasyPull to be placed behind the component with one movement of the hands
Benefits: Sturdy design allows dismounting of components even in the tightest application in a safe manner. Double hexagonal heads allow easier application of withdrawal force.
Note: Self-locking arms help prevent the risk of puller slipping under load

Equivalent: TMMA3
Brand / Quality:
SKF - High Quality
Technical
Width of Grip External, min 36mm (1.4 in.)
Width of Grip External, max 150mm (5.9 in.)
Effective Arm Length 150mm (5.9 in.)
Maximum Withdrawal Force 60 kN (6.7 ton US)
Claw Height 7.5mm (0.30 in.)
Claw Length 15mm (0.6 in.)Claw Width
20mm (0.8 in.) Hexagon on Puller or Adapter
27mm Hexagon on Mechanical Spindle
17mm Max Torque
105 Nm (75 lbf ft) Diameter Nose Piece
24mm (0.9 in.) N/A
