SKU: TMMK10-35-SKF

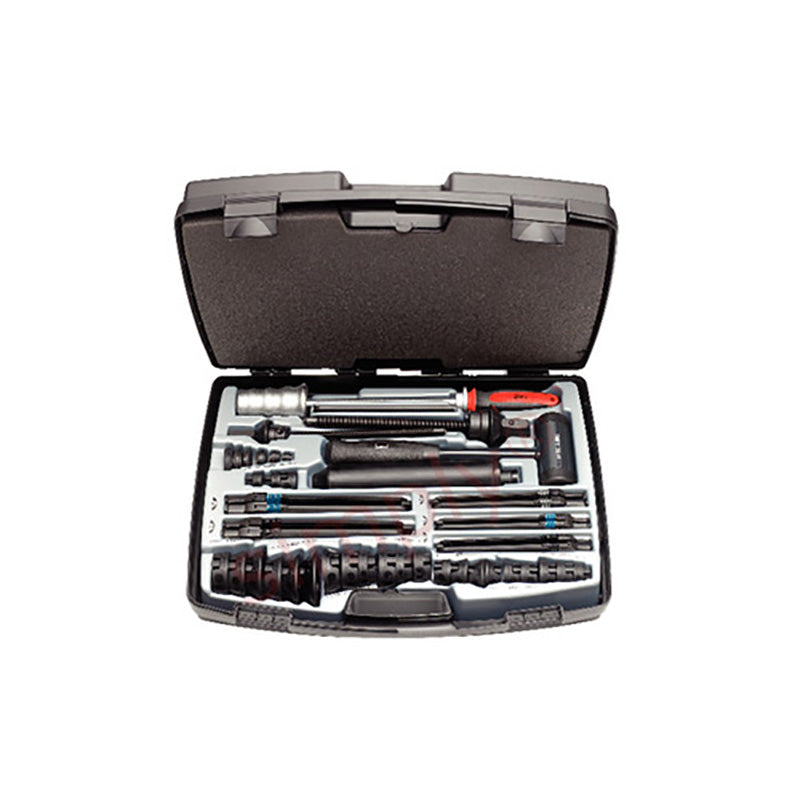

SKF TMMK10-35 Multi-purpose Combi Kit
SKF TMMK10-35 Multi-purpose Combi Kit
Regular price
CHF 1,195.00
ex VAT
Regular price
Sale price
CHF 1,195.00
ex VAT
In stock
Price Break
10+
CHF 951.92
19+
CHF 898.44
29+
CHF 887.75
39+
CHF 877.05
49+
CHF 866.36
74+
CHF 855.66
99+
CHF 802.18
199+
CHF 791.49
249+
CHF 780.79
499+
CHF 770.09
999+
CHF 748.70
Share this product
Description
Description
|
TMMK10-35: The SKF Combi Kit TMMK 10-35 is designed for quick and precise mounting of bearings with bore diameters from 10 to 35 mm and for dismounting deep groove ball bearings from shafts, housings and blind housings from the same range. For mounting, a multipurpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products. For dismounting of deep groove ball bearings from blind housings and shafts, the SKF Combi kit contains a unique three armed puller.When dismounting deep groove ball bearings from housings, a combination of this puller, sliding hammer and support rings enables easy removal of bearings. Benefits: All parts are clearly arranged in the case for easy selection and identification Case Dimensions: 530x110x360mm (20.9x4.3x14.2 in) |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Description | SKF Combi Kit |
|---|---|
| Number of Impact Rings | 24 (12 size A and 12 size B) |
| Number of Sleeves | 2 (size A and Size B) |
| Impact Rings Bore Diameter | 10-35mm (0.39-2.1 in) |
| Impact Rings Outer Diameter | 26-80mm (1.0-4.7 in) |
| Impact Sleeves Bore Diameter | 18 and 37mm (0.7 and 1.4 in) |
| Dead-blow Hammer | TMFT 36-H, Weight 1.0kg |
| Shaft Support Rings | 10,12,15,17,20,25,30 and 35mm |
| Effective Puller Arm Length | A1-135mm, A2-135mm, A3-137mm, A4-162mm, A5-167mm |
| Spindle Hexagon Heads | 19mm and 24mm |
| Sliding Hammer Displacement | 182mm (7.16 in) |
| Sliding Hammer Weight | 1.0kg |
