SKU: TPR.INT.16X80MM

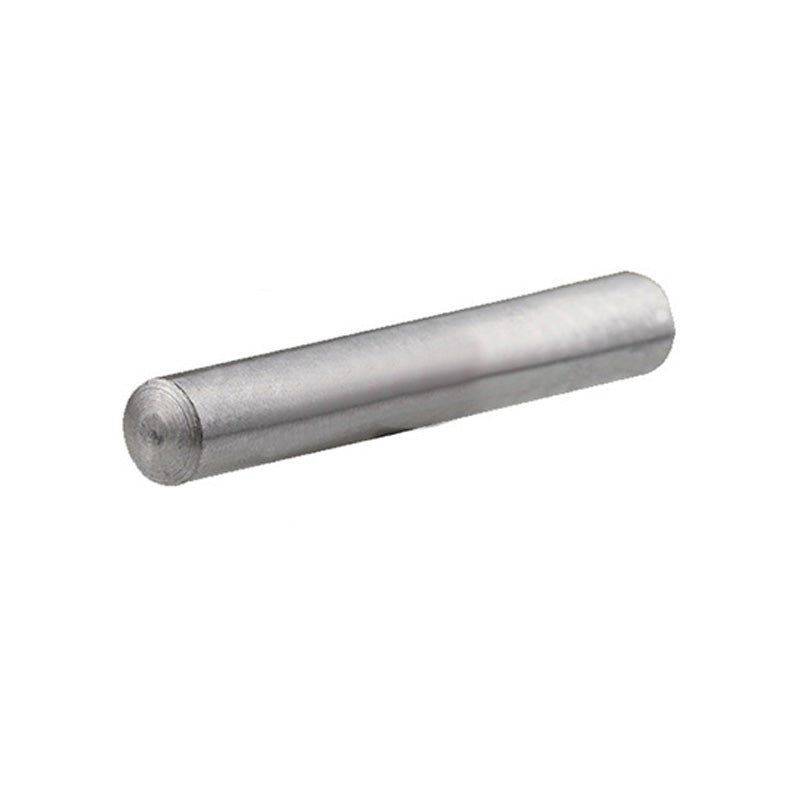

Metric Mild Steel Internally Threaded Taper Pin 16x80mm - Allow 2-3 Days
Metric Mild Steel Internally Threaded Taper Pin 16x80mm - Allow 2-3 Days
Regular price
CHF 12.41
ex VAT
Regular price
Sale price
CHF 12.41
ex VAT
In stock
Price Break
5+
CHF 12.29
10+
CHF 11.79
20+
CHF 11.54
50+
CHF 11.17
100+
CHF 10.92
500+
CHF 10.30
1000+
CHF 8.69
Couldn't load pickup availability
Description
Description
Internally Threaded Mild Steel Taper Pins: These taper pins are internally extractable which means that they are internally threaded for easier removal. The pin is simply inserted into an application and then hammered until tightly installed. To remove a pin from an application, an extraction tool can be tightened into the internal thread and used to unseat the pin.
Benefits: Quick removal and re-useable
- Brand / Quality:
- Simply Taper Pins - High Quality
- Inside Diameter:
- 16mm
- Length:
- 80mm
- Material:
- Mild Steel
Technical
Technical
| d | 16mm |
|---|---|
| L | 80mm |
| d Tolerance | +0.00 -0.070mm |
| d2 | M10 |
| b | 16mm |
| t | 25mm |
| a | 2mm |
| Material | Mild Steel |
| DIN | DIN7978A |
| Type | Internally Threaded |
| Weight per pin | 0.1263kg |
