SKU: TTUE75-XL-INA

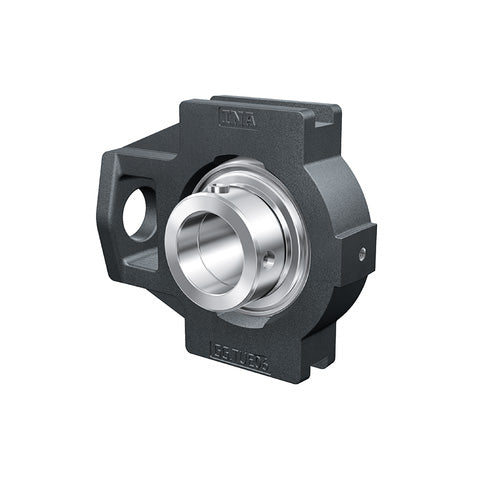

INA TTUE75XL Cast Iron Take Up Unit with Eccentric Collar Insert 75mm Bore
INA TTUE75XL Cast Iron Take Up Unit with Eccentric Collar Insert 75mm Bore
Regular price
CHF 436.25
ex VAT
Regular price
Sale price
CHF 436.25
ex VAT
In stock
Price Break
10+
CHF 388.26
19+
CHF 366.45
29+
CHF 362.09
39+
CHF 357.73
49+
CHF 353.36
74+
CHF 349.00
99+
CHF 327.19
199+
CHF 322.83
249+
CHF 318.46
499+
CHF 314.10
999+
CHF 305.38
Couldn't load pickup availability
Description
Description
|
INA Take-Up Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. These cast iron take-up units are used where shafts must undergo substantial displacement. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 75mm
- Style:
- TTUE
Technical
Technical
| d | 75mm |
|---|---|
| L | 214mm |
| H | 166mm |
| A | 70mm |
| A1 | 25mm (Tolerance: H13) |
| A2 | 50mm |
| B1 | 67mm |
| d3 max | 100mm |
| H1 | 151mm (Tolerance: +/-0.25) |
| L1 | 135mm |
| L2 | 20mm |
| L3 | 120mm |
| N | 41mm |
| N1 | 35mm |
| N2 | 70mm |
| Q | M6 |
| S1 | 45.5mm |
| T | 110mm |
| Mass | 7.13 kg |
| Basic dynamic load rating Cr | 66000 N |
| Basic static load rating Cor | 44500 N |
| Designation of housing | TUE15 |
| Designation of bearing | GE75-XL-KTT-B |
