• SKF TU1-7/16TF Grub Screw Type Take Up Unit 1-7/16 inch Bore
1 1

SKU: TU1.7/16TF-SKF

SKF TU1-7/16TF Grub Screw Type Take Up Unit 1-7/16 inch Bore

SKF TU1-7/16TF Grub Screw Type Take Up Unit 1-7/16 inch Bore
CHF 142.00 ex VAT
CHF 142.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 112.52
20+ CHF 106.20
30+ CHF 104.94
40+ CHF 103.67
50+ CHF 102.41
75+ CHF 101.14
100+ CHF 94.82
200+ CHF 93.56
250+ CHF 92.29
500+ CHF 91.03
1000+ CHF 88.50
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

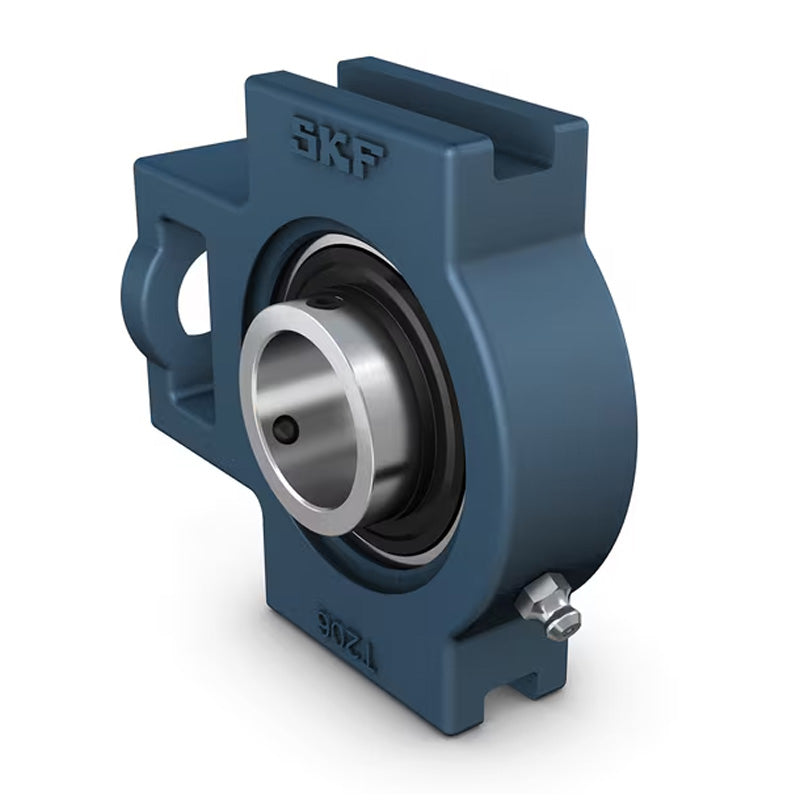

SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
TU
Technical
d 1-7/16 inch
A 37mm
A1 13.5mm
A2 30mm
B 42.9mm
D1 22mm
H 103mm
H1 89mm
H2 64mm
L 129mm
L1 78mm
L2 12mm
L3 64mm
N 38mm
N1 17mm
s1 25.4mm
Static load Cr 15.3 kN
Dynamic load Cor 25.5 kN
Fatigue load limit Pu 0.655 kN
Limiting speed 5300 rpm
Weight 1.45 kg
