• SKF TU25FM Eccentric Locking Collar Take Up Unit 25mm Bore
1 1

SKU: TU25FM-SKF

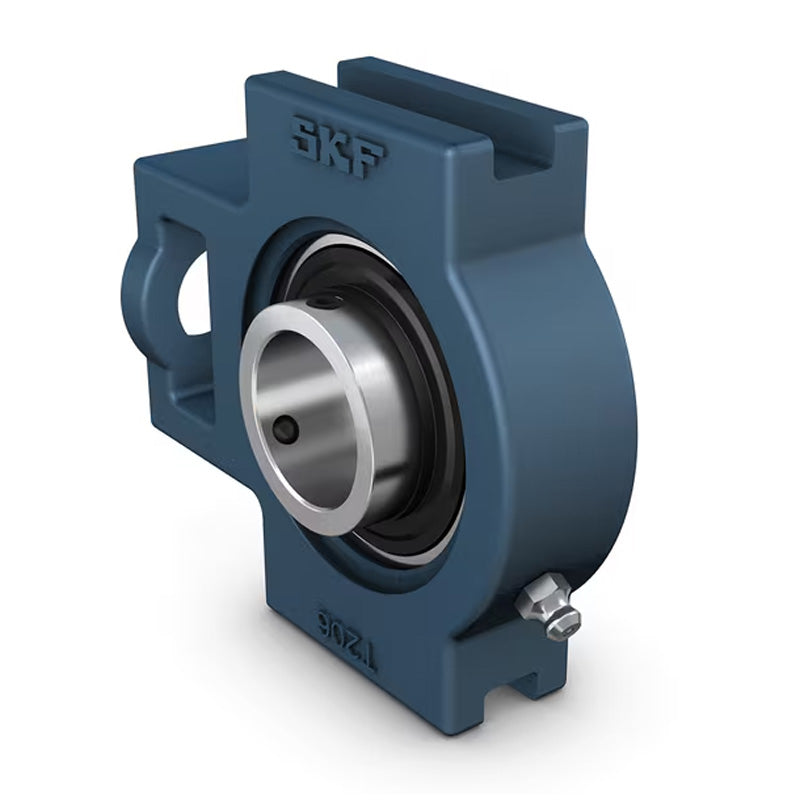

SKF TU25FM Eccentric Locking Collar Take Up Unit 25mm Bore

SKF TU25FM Eccentric Locking Collar Take Up Unit 25mm Bore
CHF 68.00 ex VAT
CHF 68.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 54.18
20+ CHF 51.14
30+ CHF 50.53
40+ CHF 49.92
50+ CHF 49.31
75+ CHF 48.70
100+ CHF 45.66
200+ CHF 45.05
250+ CHF 44.44
500+ CHF 43.83
1000+ CHF 42.61
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
25mm
Style:
TU
Technical
d 25mm
A 34mm
A1 13.5mm
A2 25mm
B1 31mm
D1 19mm
H 91mm
H1 76mm
H2 53mm
L 100mm
L1 64mm
L2 10mm
L3 52mm
N 33mm
N1 16mm
s1 23.5mm
Static load Cr 7.8 kN
Dynamic load Cor 14 kN
Fatigue load limit Pu 0.335 kN
Limiting speed 7000 rpm
A5 18mm
Weight 0.77 kg
Compatible end cover ECY205
