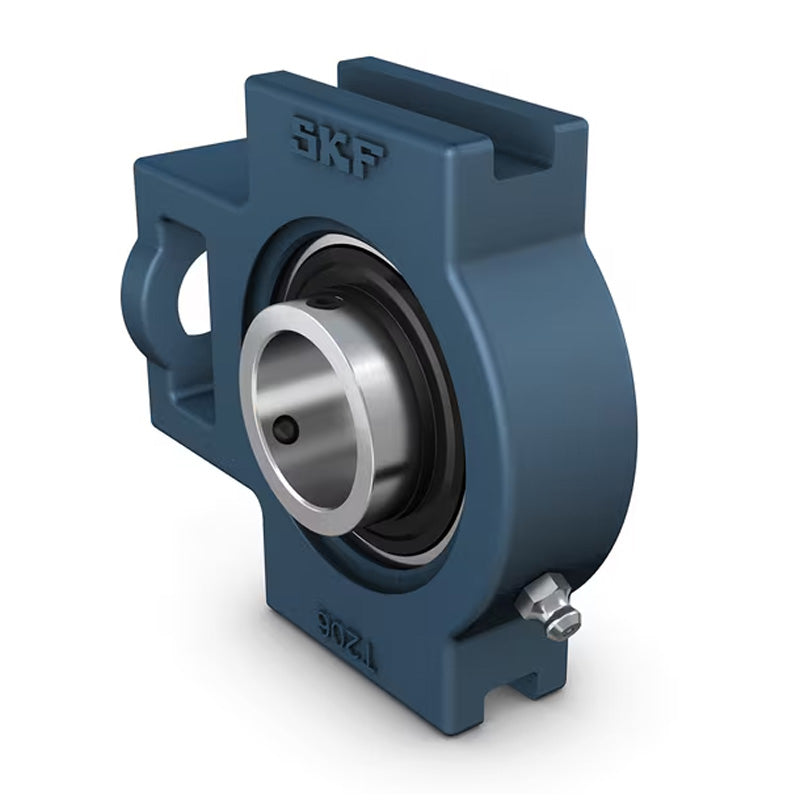

SKF TU40FM Eccentric Locking Collar Take Up Unit 40mm Bore
SKF TU40FM Eccentric Locking Collar Take Up Unit 40mm Bore
Regular price
CHF 112.63
ex VAT
Regular price
Sale price
CHF 112.63
ex VAT
In stock
Price Break
10+
CHF 100.24
19+
CHF 94.61
29+
CHF 93.48
39+
CHF 92.36
49+
CHF 91.23
74+
CHF 90.10
99+
CHF 84.47
199+
CHF 83.35
249+
CHF 82.22
499+
CHF 81.09
999+
CHF 78.84
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- TU
Technical
Technical
| d | 40mm |
|---|---|
| A | 49mm |
| A1 | 17.5mm |
| A2 | 33mm |
| B1 | 43.7mm |
| D1 | 29mm |
| H | 115mm |
| H1 | 101mm |
| H2 | 83mm |
| L | 145mm |
| L1 | 88mm |
| L2 | 15mm |
| L3 | 83mm |
| N | 50mm |
| N1 | 19mm |
| s1 | 32.7mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| A5 | 23.5mm |
| Weight | 2.3 kg |
| Compatible end cover | ECY208 |
