SKU: TU40TF-SKF
SKF TU40TF Grub Screw Type Take Up Unit 40mm Bore
SKF TU40TF Grub Screw Type Take Up Unit 40mm Bore
Regular price
CHF 93.00
ex VAT
Regular price
Sale price
CHF 93.00
ex VAT
In stock
Price Break
10+
CHF 73.64
20+
CHF 69.50
30+
CHF 68.67
40+
CHF 67.84
50+
CHF 67.02
75+
CHF 66.19
100+
CHF 62.05
200+
CHF 61.23
250+
CHF 60.40
500+
CHF 59.57
1000+
CHF 57.92
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- TU
Technical
Technical

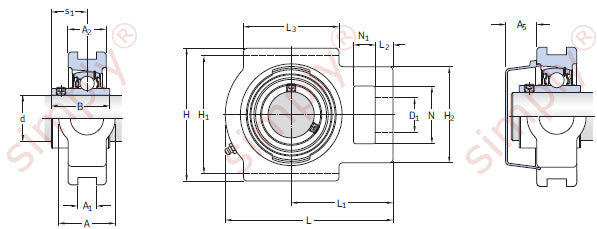

| d | 40mm |
|---|---|
| A | 49mm |
| A1 | 17.5mm |
| A2 | 33mm |
| B | 49.2mm |
| D1 | 29mm |
| H | 115mm |
| H1 | 101mm |
| H2 | 83mm |
| L | 145mm |
| L1 | 88mm |
| L2 | 15mm |
| L3 | 83mm |
| N | 50mm |
| N1 | 19mm |
| s1 | 30.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| A5 | 23.5mm |
| Weight | 2.3 kg |
| Compatible end cover | ECY208 |
