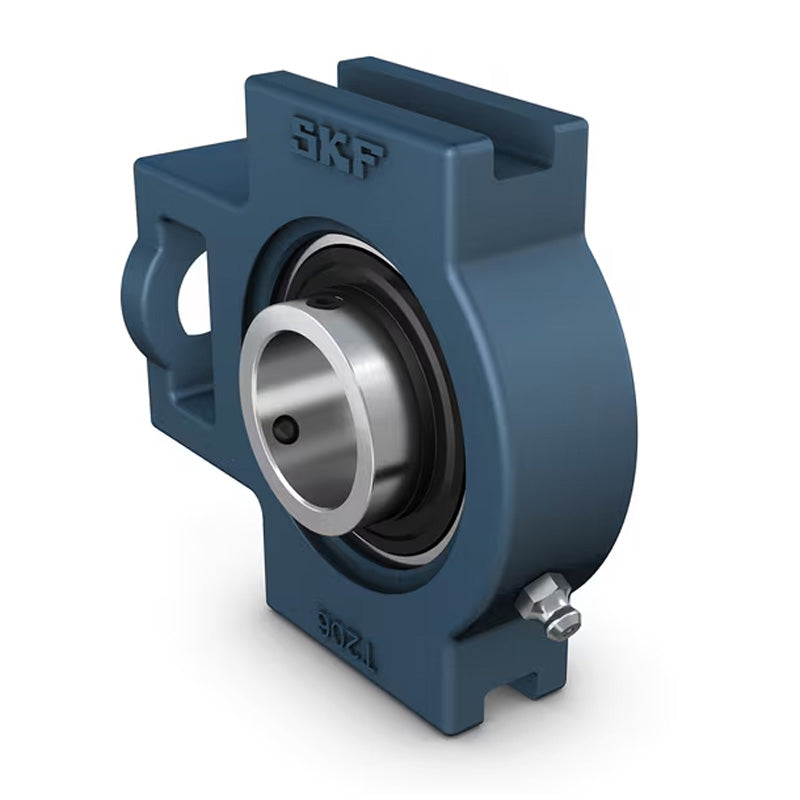

• SKF TU45FM Eccentric Locking Collar Take Up Unit 45mm Bore
1 1

SKU: TU45FM-SKF

SKF TU45FM Eccentric Locking Collar Take Up Unit 45mm Bore

SKF TU45FM Eccentric Locking Collar Take Up Unit 45mm Bore
CHF 134.00 ex VAT
CHF 134.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 106.15
20+ CHF 100.19
30+ CHF 99.00
40+ CHF 97.80
50+ CHF 96.61
75+ CHF 95.42
100+ CHF 89.46
200+ CHF 88.26
250+ CHF 87.07
500+ CHF 85.88
1000+ CHF 83.49
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Style:
TU

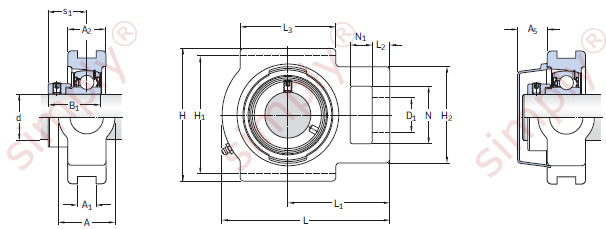

Technical
d 45mm
A 49mm
A1 17.5mm
A2 35mm
B1 43.7mm
D1 29mm
H 117mm
H1 101mm
H2 83mm
L 144mm
L1 87mm
L2 15mm
L3 83mm
N 49mm
N1 19mm
s1 32.7mm
Static load Cr 21.6 kN
Dynamic load Cor 33.2 kN
Fatigue load limit Pu 0.915 kN
Limiting speed 4300 rpm
A5 23mm
Weight 2.3 kg
Compatible end cover ECY209
