• SKF TU50TF Grub Screw Type Take Up Unit 50mm Bore
1 1

SKU: TU50TF-SKF

SKF TU50TF Grub Screw Type Take Up Unit 50mm Bore

SKF TU50TF Grub Screw Type Take Up Unit 50mm Bore
CHF 118.00 ex VAT
CHF 118.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 93.33
20+ CHF 88.09
30+ CHF 87.04
40+ CHF 85.99
50+ CHF 84.95
75+ CHF 83.90
100+ CHF 78.65
200+ CHF 77.60
250+ CHF 76.56
500+ CHF 75.51
1000+ CHF 73.41
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

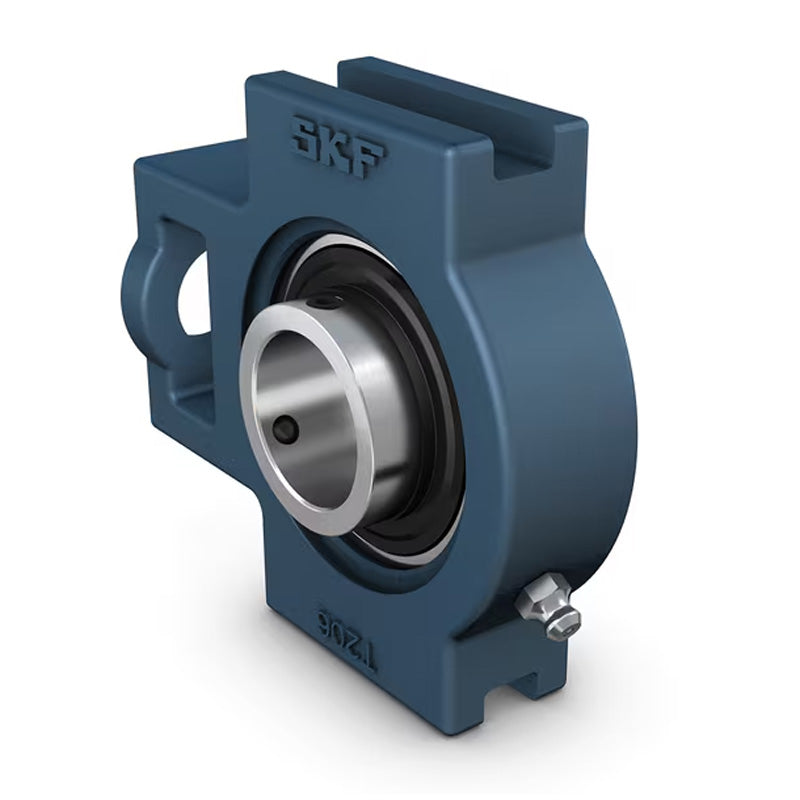

SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Style:
TU
Technical
d 50mm
A 49mm
A1 17.5mm
A2 36mm
B 51.6mm
D1 29mm
H 117mm
H1 101mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 49mm
N1 19mm
s1 32.6mm
Static load Cr 23.2 kN
Dynamic load Cor 35.1 kN
Fatigue load limit Pu 0.98 kN
Limiting speed 4000 rpm
A5 29.5mm
Weight 2.4 kg
Compatible end cover ECY210
