SKU: TUJ35TF-SKF
SKF TUJ35TF Grub Screw Type Take Up Unit 35mm Bore
SKF TUJ35TF Grub Screw Type Take Up Unit 35mm Bore
Regular price
CHF 82.00
ex VAT
Regular price
Sale price
CHF 82.00
ex VAT
In stock
Price Break
10+
CHF 64.75
20+
CHF 61.11
30+
CHF 60.39
40+
CHF 59.66
50+
CHF 58.93
75+
CHF 58.20
100+
CHF 54.57
200+
CHF 53.84
250+
CHF 53.11
500+
CHF 52.38
1000+
CHF 50.93
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- TUJ
Technical
Technical

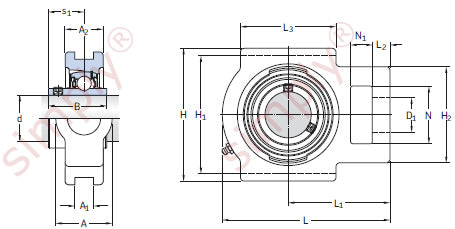

| d | 35mm |
|---|---|
| A | 37mm |
| A1 | 12mm |
| A2 | 30mm |
| B | 42.9mm |
| D1 | 22mm |
| H | 103mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 12mm |
| L3 | 64mm |
| N | 38mm |
| N1 | 17mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.5 kg |
