SKU: TUNG.3/4IN

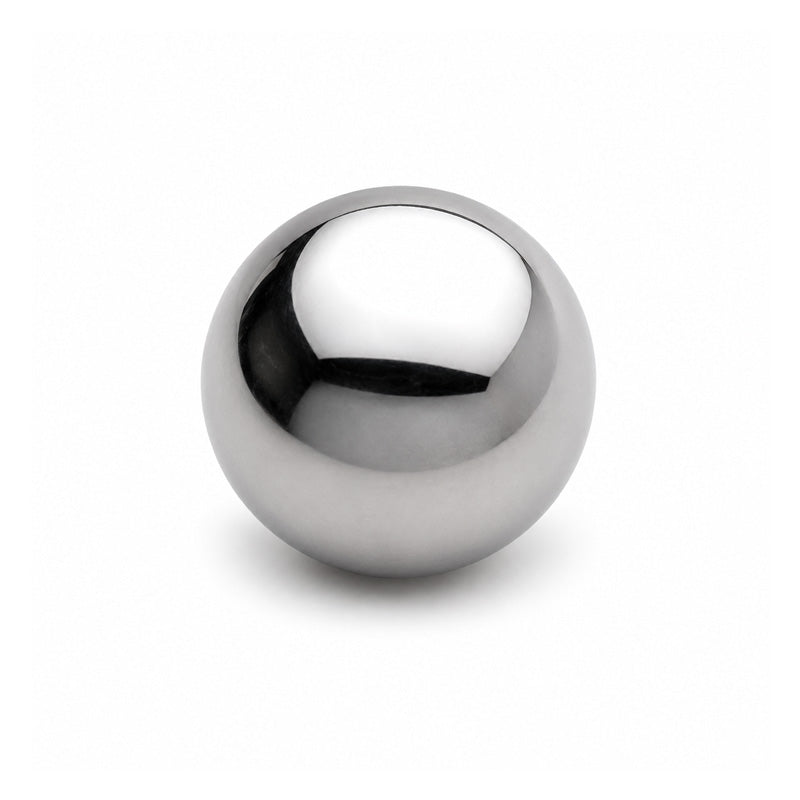

3/4 inch Diameter Tungsten Carbide Ball
3/4 inch Diameter Tungsten Carbide Ball
Regular price
CHF 39.75
ex VAT
Regular price
Sale price
CHF 39.75
ex VAT
In stock
Price Break
5+
CHF 39.35
10+
CHF 37.76
20+
CHF 36.97
50+
CHF 35.78
100+
CHF 34.98
500+
CHF 32.99
1000+
CHF 27.83
Couldn't load pickup availability
Description
Description
Tungsten Carbide Ball Bearing: Tungsten carbide balls are made from 100% virgin tungsten carbide material. Balls made of tungsten carbide have the features of high hardness, high precision, high anti-rust capability, high wear-resistant and abrasive and so on, which have much longer usage life than steel balls. Due to its unique features carbide balls are widely used in many fields such as steel bearings, instruments, hardware, sealing, machinery, medical equipment and aviation.
Benefits: High density and high melting point.
Benefits: High density and high melting point.
- Brand / Quality:
- Simply Loose Ball - High Quality
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Ball diameter | 19.05mm = 0.75 (3/4) inch |
|---|---|
| Material | Tungsten Carbide |
| Hardness | 1600 HV30 - 92.1 HRA at 20 Deg C |
| Transverse rupture strength | 2600 N/mm2 at 20 Deg C |
| Compressive strength | 6200 N/mm2 at 20 Deg C |
| Thermal conductivity | 100 W/m Deg C at 20 Deg C |
| Electrical resistivity | 20 Micro-ohm cm |
| Young's modulus | 630 KN/mm2 |
| Poisson's ratio | 0.21 |
| Specific gravity | 15.00 g/cm3 |
| Magnetic properties | Slightly Magnetic |
