SKU: UC.202-10

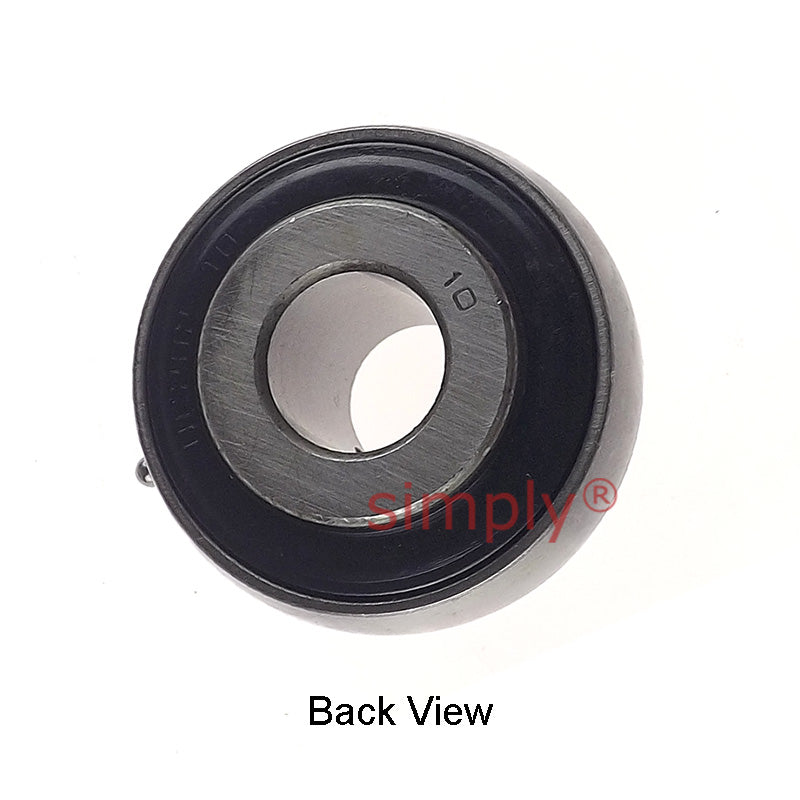

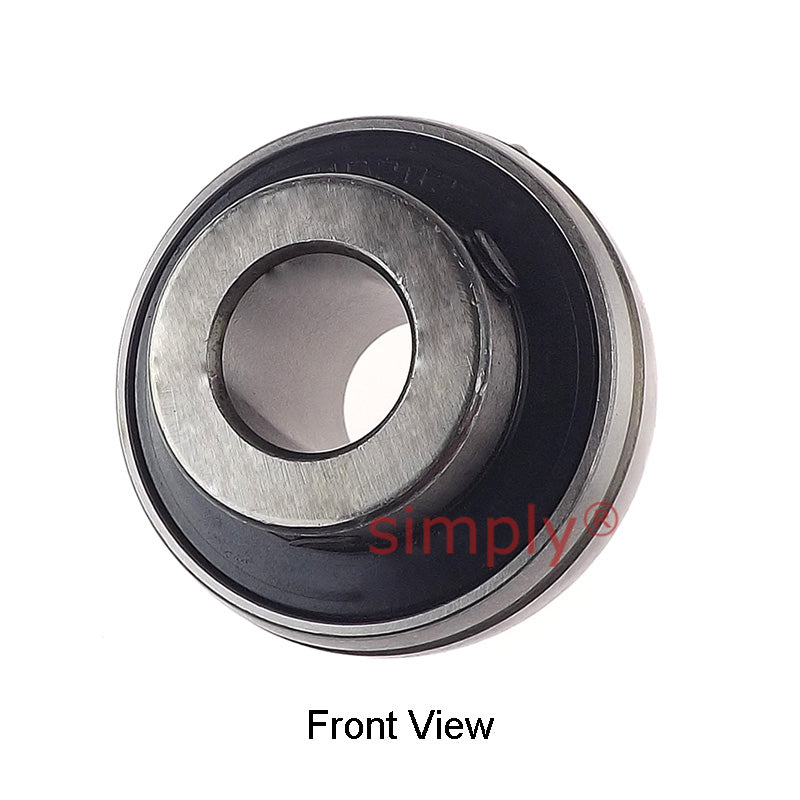

UC202-10 Imperial Bearing Insert with 5/8 inch Bore 47mm Outside Dia
UC202-10 Imperial Bearing Insert with 5/8 inch Bore 47mm Outside Dia
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
In stock
Price Break
3+
CHF 6.01
4+
CHF 5.67
9+
CHF 5.60
19+
CHF 5.54
49+
CHF 5.47
99+
CHF 5.40
499+
CHF 5.06
999+
CHF 5.00
1999+
CHF 4.93
2999+
CHF 4.86
4999+
CHF 4.73
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 47mm
- Style:
- UC
Technical
Technical
| d | 5/8 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
