SKU: UC.202-9

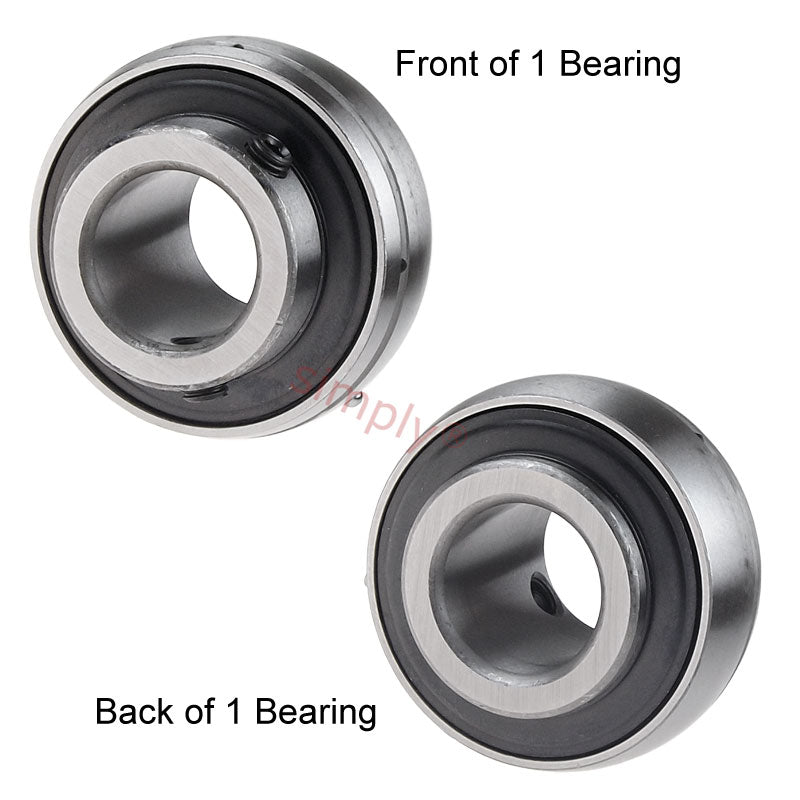

UC202-9 Metric Bearing Insert with 14.29mm Bore 47mm Outside Dia
UC202-9 Metric Bearing Insert with 14.29mm Bore 47mm Outside Dia
Regular price
CHF 10.16
ex VAT
Regular price
Sale price
CHF 10.16
ex VAT
In stock
Price Break
10+
CHF 9.04
19+
CHF 8.53
29+
CHF 8.43
39+
CHF 8.33
49+
CHF 8.23
74+
CHF 8.13
99+
CHF 7.62
199+
CHF 7.52
249+
CHF 7.42
499+
CHF 7.32
999+
CHF 7.11
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14.29mm
- Outside Diameter:
- 47mm
- Style:
- UC
Technical
Technical
| d | 14.29mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | - |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
