SKU: UC.203-11

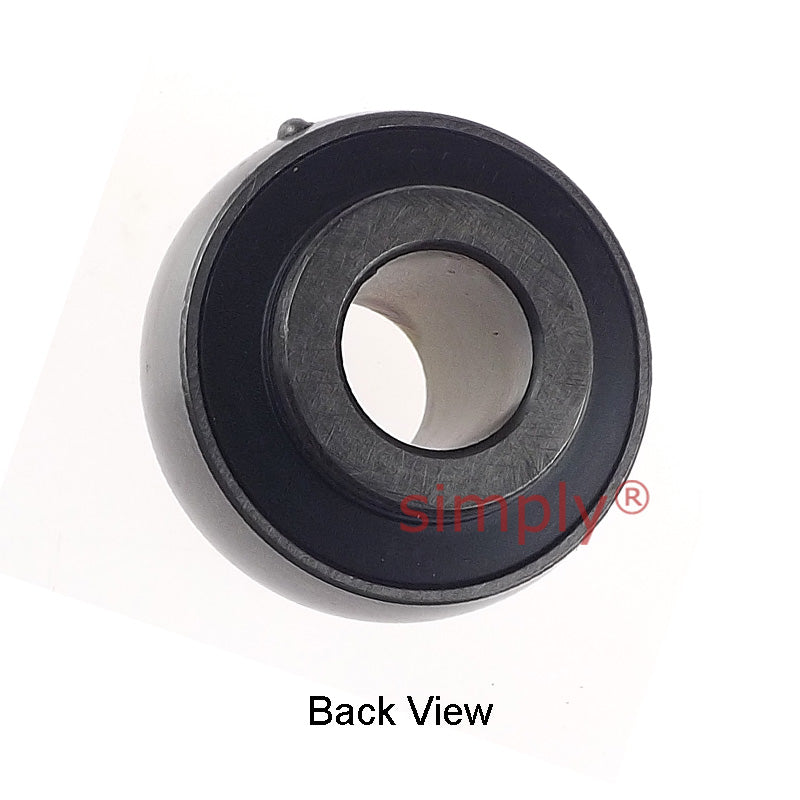

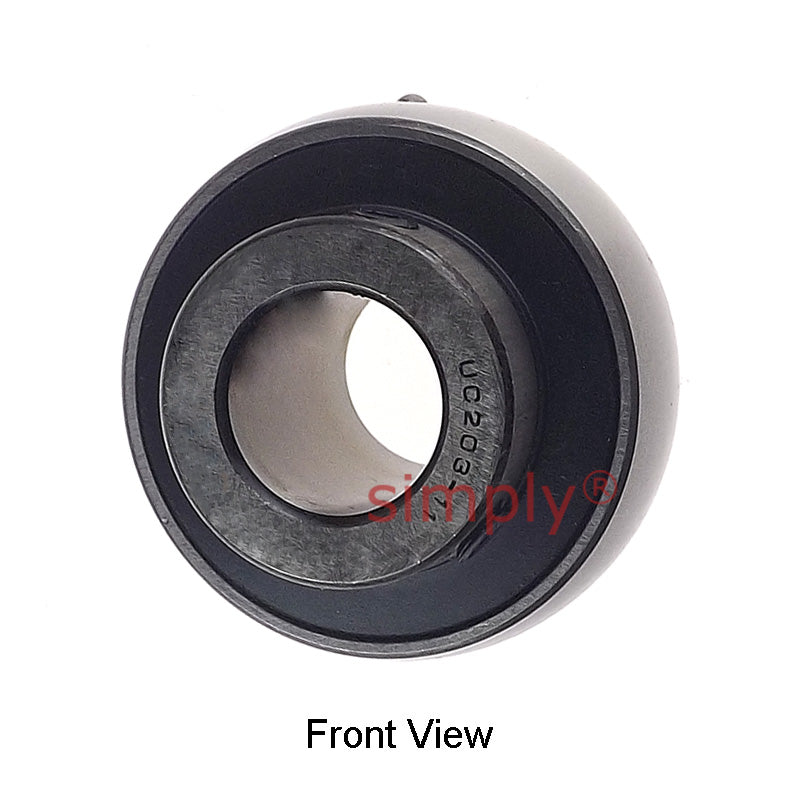

UC203-11 Imperial Bearing Insert with 11/16 inch Bore 47mm Outside Dia
UC203-11 Imperial Bearing Insert with 11/16 inch Bore 47mm Outside Dia
Regular price
CHF 7.44
ex VAT
Regular price
Sale price
CHF 7.44
ex VAT
In stock
Price Break
10+
CHF 6.62
19+
CHF 6.25
29+
CHF 6.18
39+
CHF 6.10
49+
CHF 6.03
74+
CHF 5.95
99+
CHF 5.58
199+
CHF 5.51
249+
CHF 5.43
499+
CHF 5.36
999+
CHF 5.21
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Outside Diameter:
- 47mm
- Style:
- UC
Technical
Technical
| d | 11/16 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
