SKU: UC.205

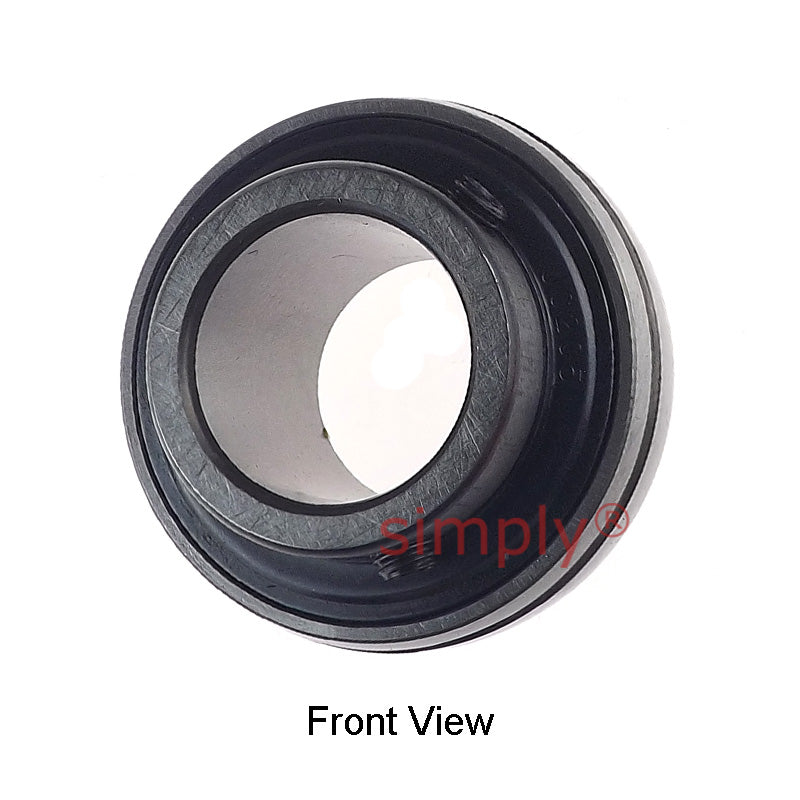

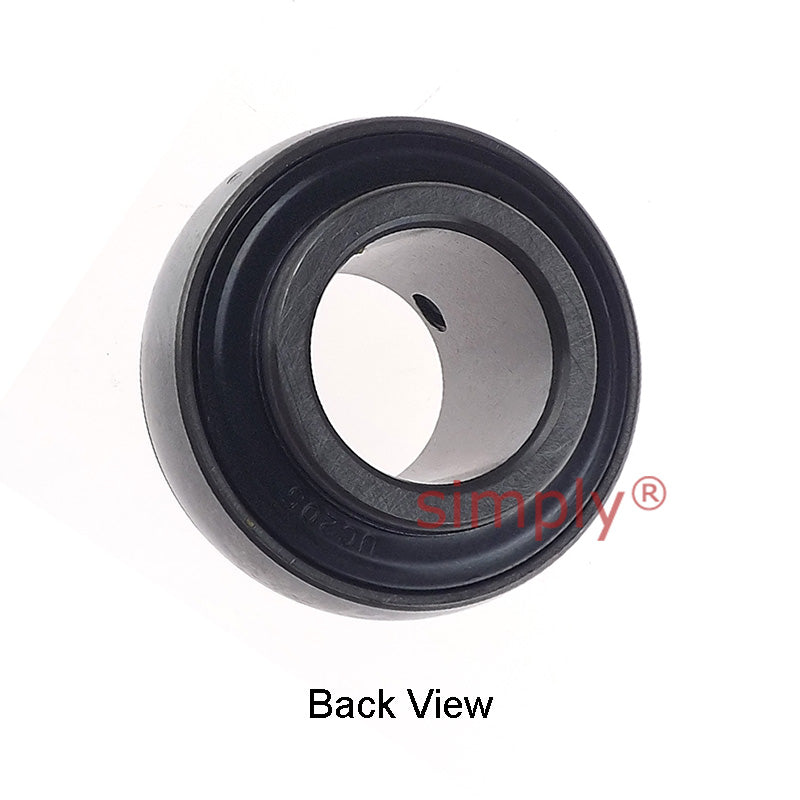

UC205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
UC205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Equivalent to: 1025-25G
In stock
Price Break
3+
CHF 4.97
4+
CHF 4.69
9+
CHF 4.63
19+
CHF 4.58
49+
CHF 4.52
99+
CHF 4.46
499+
CHF 4.18
999+
CHF 4.13
1999+
CHF 4.07
2999+
CHF 4.02
4999+
CHF 3.91
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1025-25G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- UC
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| Bi | 34mm |
| Be | 17mm |
| n | 14.3mm |
| m | 19.7mm |
| G | 5.5mm |
| Grub screw | M6x1 |
| Weight | 0.2 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
