SKU: UC.205-13

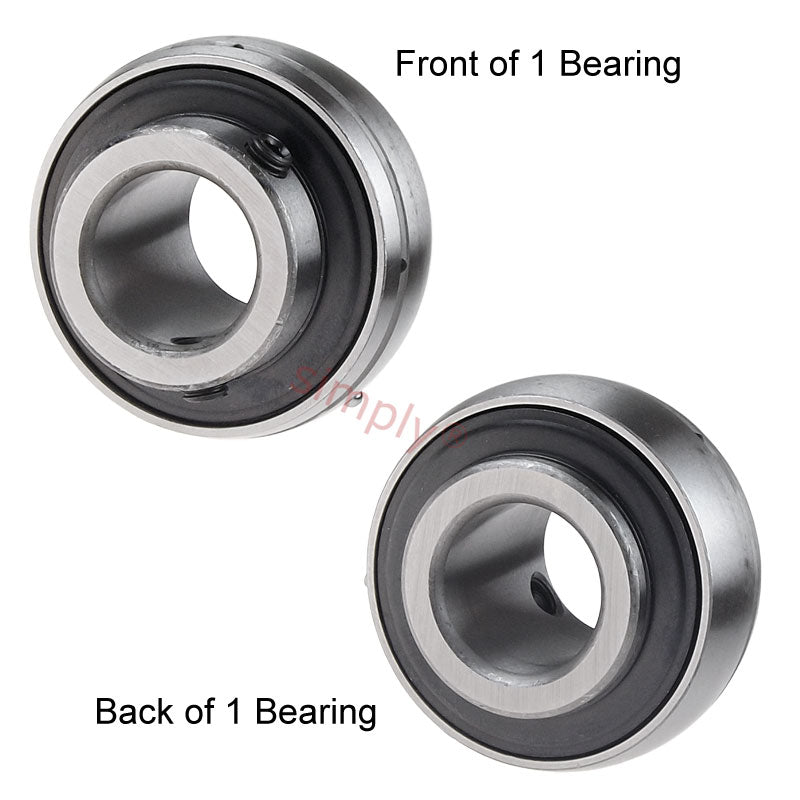

UC205-13 Imperial Bearing Insert with 13/16 inch Bore 52mm Outside Dia
UC205-13 Imperial Bearing Insert with 13/16 inch Bore 52mm Outside Dia
Regular price
CHF 21.89
ex VAT
Regular price
Sale price
CHF 21.89
ex VAT
In stock
Price Break
10+
CHF 19.48
19+
CHF 18.39
29+
CHF 18.17
39+
CHF 17.95
49+
CHF 17.73
74+
CHF 17.51
99+
CHF 16.42
199+
CHF 16.20
249+
CHF 15.98
499+
CHF 15.76
999+
CHF 15.32
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Outside Diameter:
- 52mm
- Style:
- UC
Technical
Technical
| d | 13/16 inch |
|---|---|
| D | 52mm |
| Bi | 34mm |
| Be | 17mm |
| n | 14.3mm |
| m | 19.7mm |
| G | 5.5mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.23 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
