SKU: UC.205-15

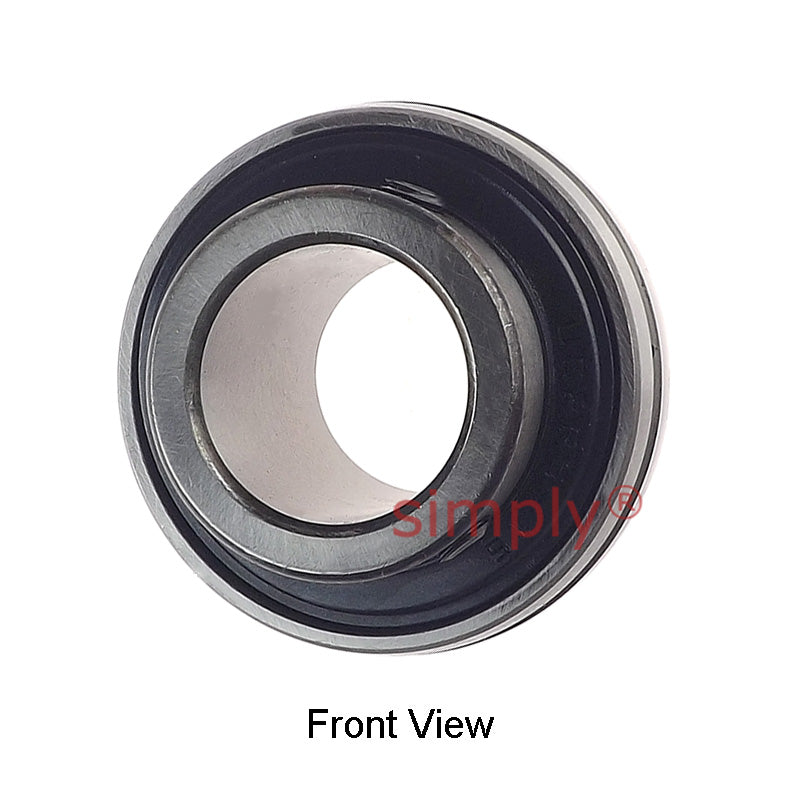

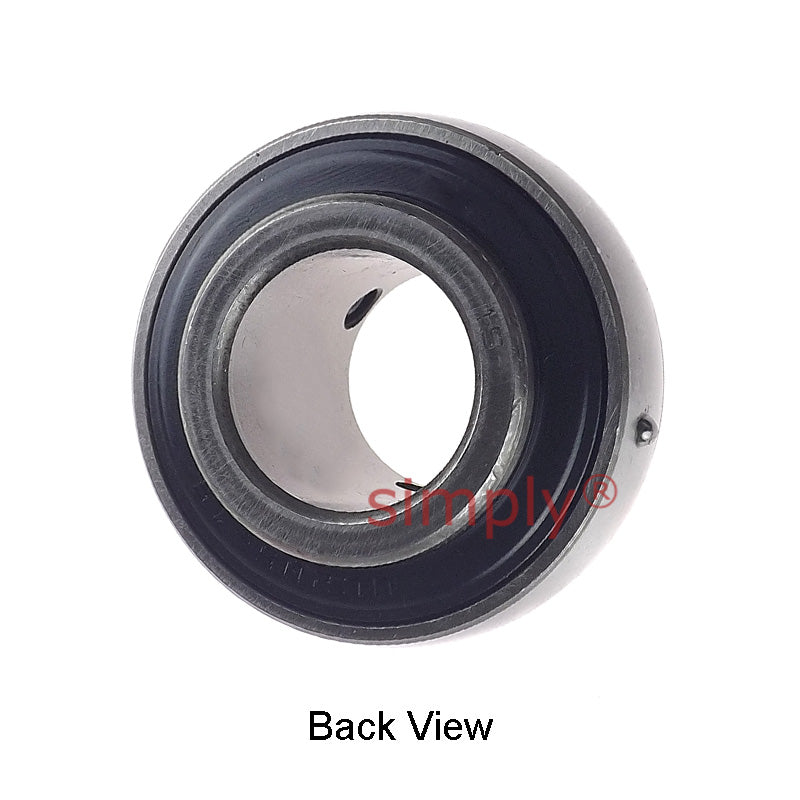

UC205-15 Imperial Bearing Insert with 15/16 inch Bore 52mm Outside Dia
UC205-15 Imperial Bearing Insert with 15/16 inch Bore 52mm Outside Dia
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
3+
CHF 5.09
4+
CHF 4.81
9+
CHF 4.75
19+
CHF 4.69
49+
CHF 4.64
99+
CHF 4.58
499+
CHF 4.29
999+
CHF 4.23
1999+
CHF 4.18
2999+
CHF 4.12
4999+
CHF 4.01
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Outside Diameter:
- 52mm
- Style:
- UC
Technical
Technical
| d | 15/16 inch |
|---|---|
| D | 52mm |
| Bi | 34mm |
| Be | 17mm |
| n | 14.3mm |
| m | 19.7mm |
| G | 5.5mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.21 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
