SKU: UC.206-20

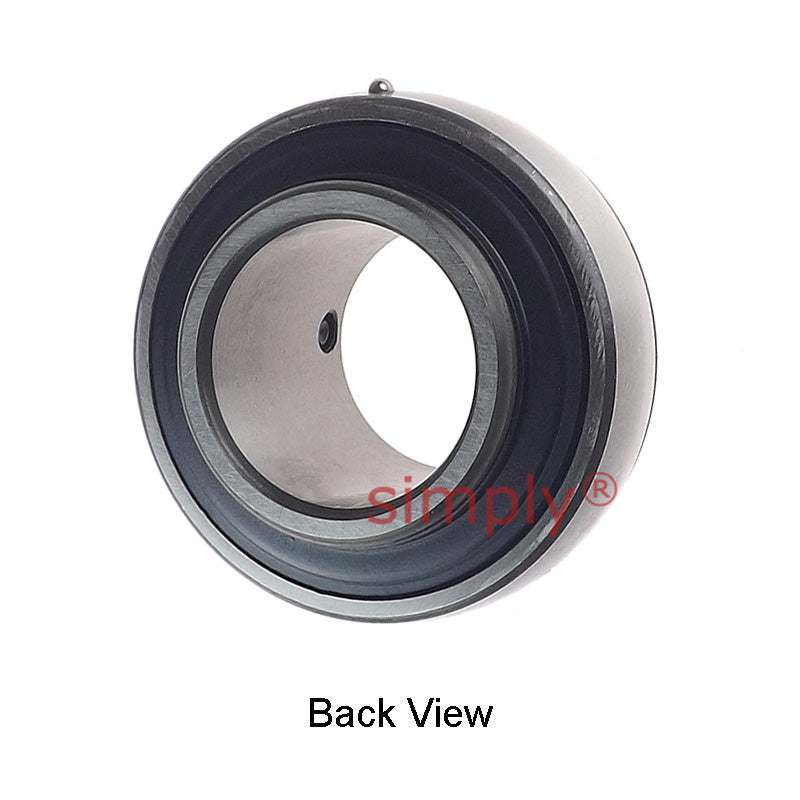

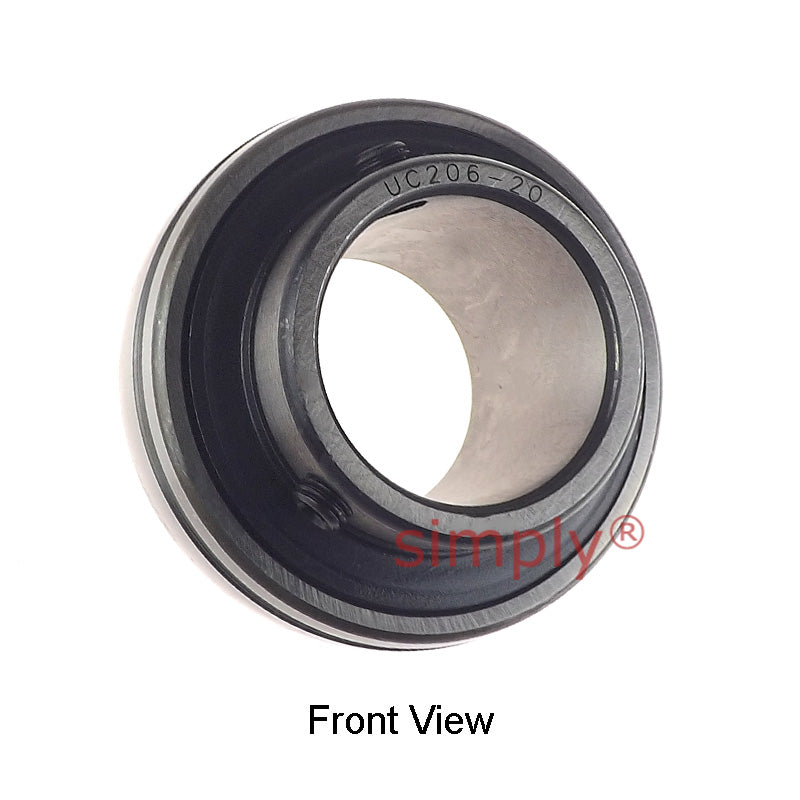

UC206-20 Imperial Bearing Insert with 1-1/4 inch Bore 62mm Outside Dia
UC206-20 Imperial Bearing Insert with 1-1/4 inch Bore 62mm Outside Dia
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: 1030-1-1/4G
In stock
Price Break
3+
CHF 6.65
4+
CHF 6.28
9+
CHF 6.21
19+
CHF 6.13
49+
CHF 6.06
99+
CHF 5.98
499+
CHF 5.61
999+
CHF 5.53
1999+
CHF 5.46
2999+
CHF 5.38
4999+
CHF 5.23
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1030-1-1/4G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Style:
- UC
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| n | 15.9mm |
| m | 22.2mm |
| G | 6mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.34 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
