SKU: UC.206-20.TS.CHAL

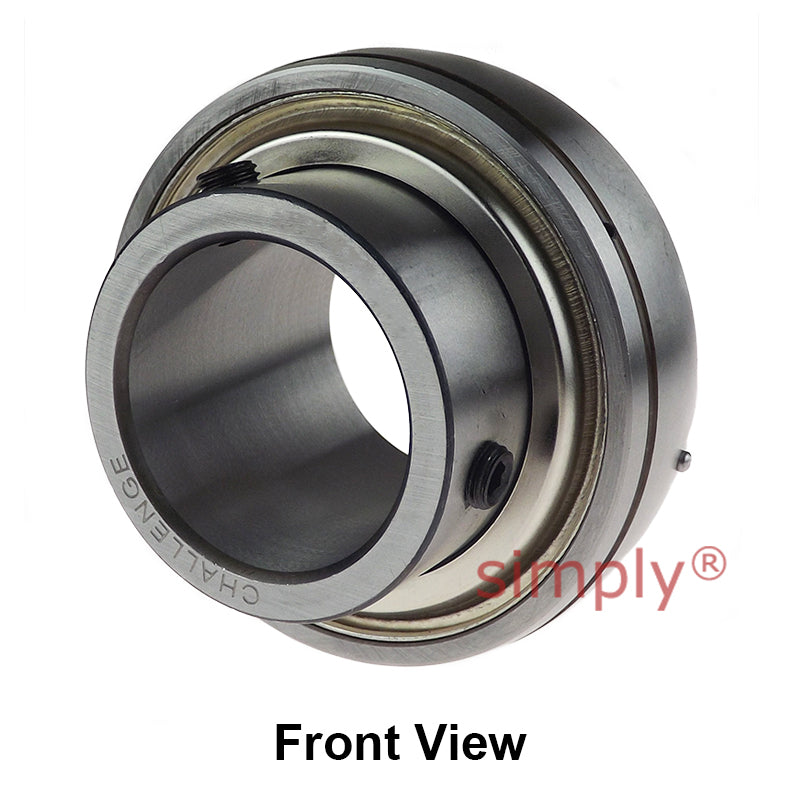

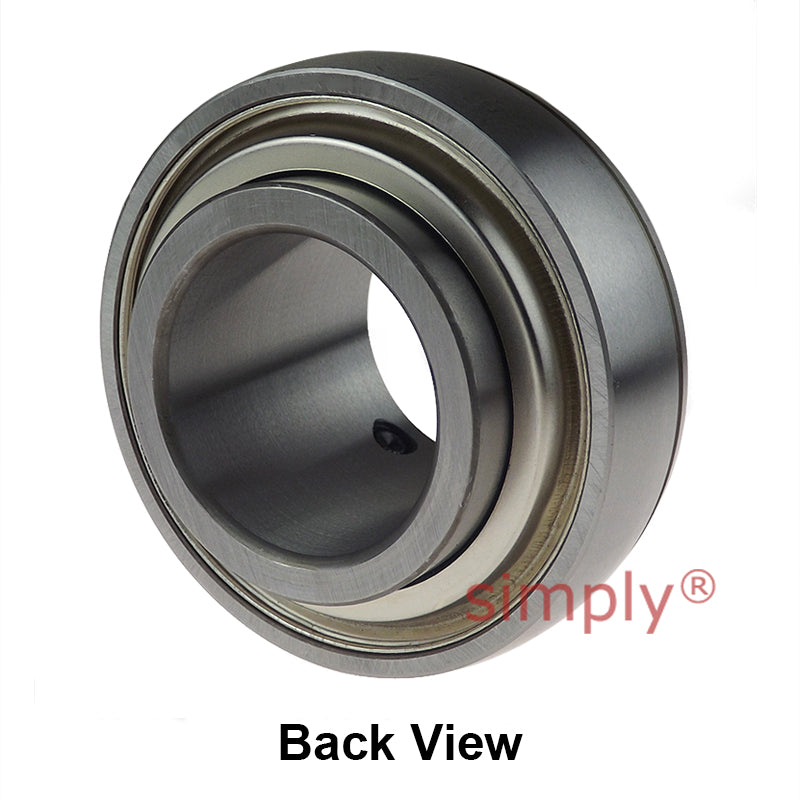

Challenge UC206-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC206-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
Equivalent to: UC.206-20
In stock
Price Break
3+
CHF 14.91
5+
CHF 14.07
9+
CHF 13.90
19+
CHF 13.73
49+
CHF 13.57
74+
CHF 13.40
99+
CHF 12.56
199+
CHF 12.39
249+
CHF 12.23
499+
CHF 12.06
999+
CHF 11.72
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.206-20
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 1-1/4 inch |
|---|---|
| Outside Diameter D | 62mm |
| Overall Width Bi | 38.1mm |
| Inner Race Width Be | 19mm |
| Back of Bearing to Centre Line n | 15.9mm |
| Front of Bearing to Centre Line m | 22.2mm |
| Dimension G | 5mm |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1520kg |
| Load Rating (Static) | 1020kg |
| Max Speed | 2800 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
