SKU: UC.207-20

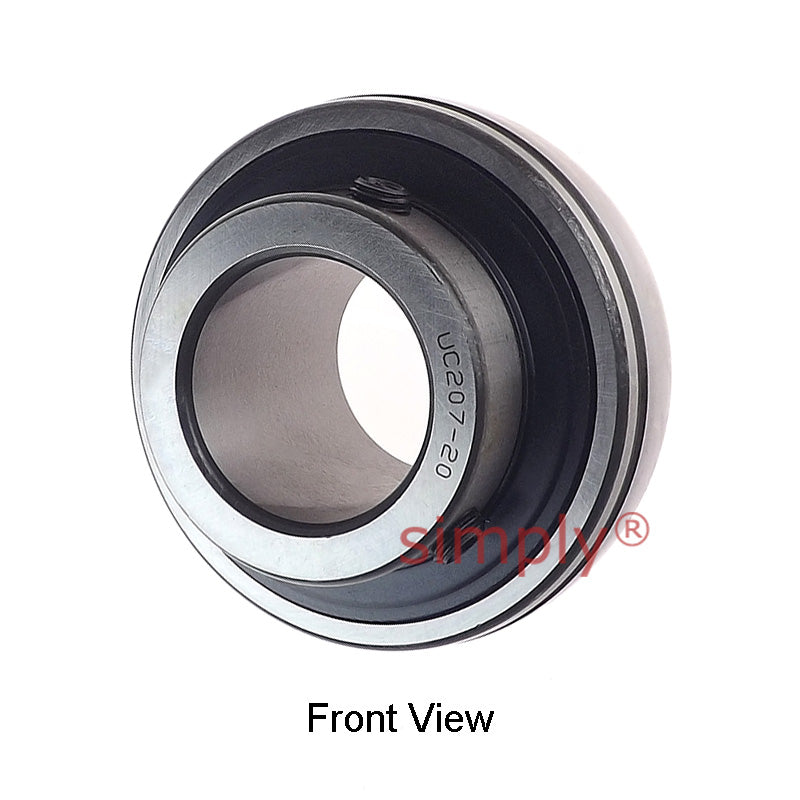

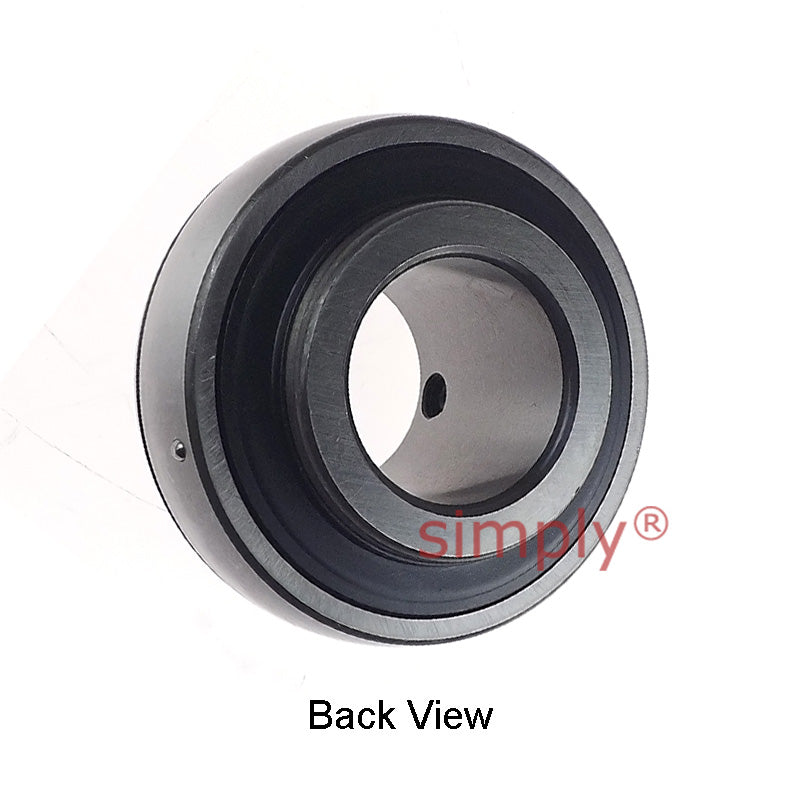

UC207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
UC207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: 1035-1-1/4G
In stock
Price Break
3+
CHF 8.40
4+
CHF 7.93
9+
CHF 7.83
19+
CHF 7.74
49+
CHF 7.64
99+
CHF 7.55
499+
CHF 7.08
999+
CHF 6.98
1999+
CHF 6.89
2999+
CHF 6.79
4999+
CHF 6.60
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-1-1/4G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- UC
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.54 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
