SKU: UC.213-40.TS.CHAL

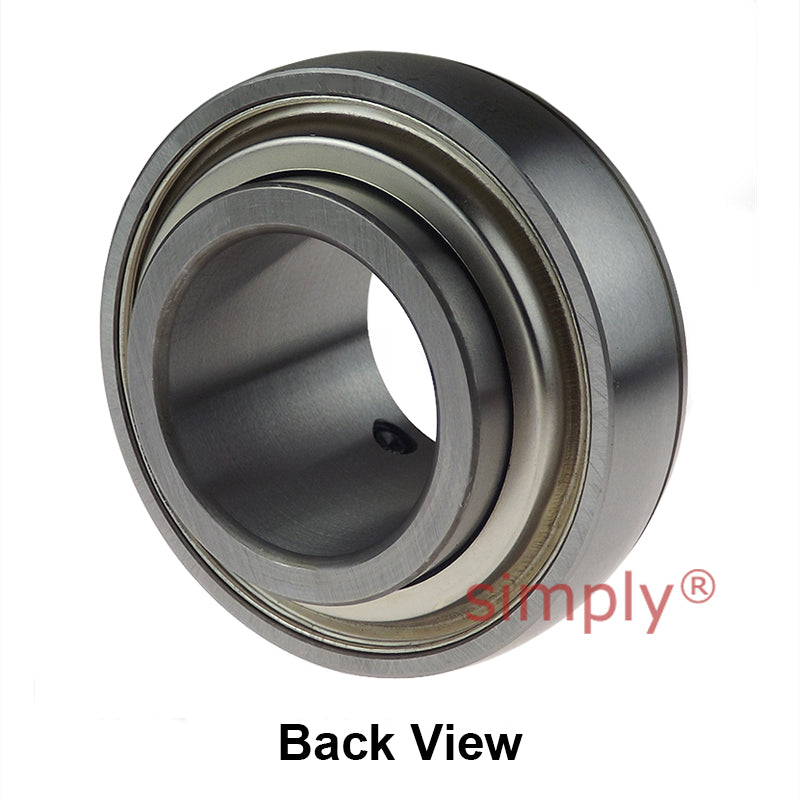

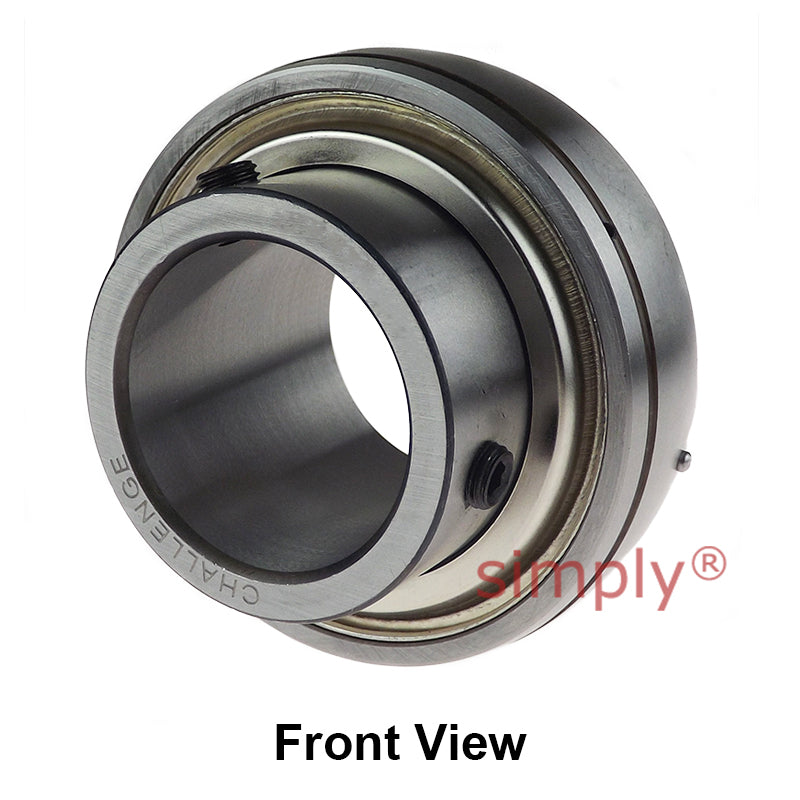

Challenge UC213-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC213-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 98.87
ex VAT
Regular price
Sale price
CHF 98.87
ex VAT
Equivalent to: UC.213-40
In stock
Price Break
10+
CHF 87.99
19+
CHF 83.05
29+
CHF 82.06
39+
CHF 81.07
49+
CHF 80.08
74+
CHF 79.10
99+
CHF 74.15
199+
CHF 73.16
249+
CHF 72.18
499+
CHF 71.19
999+
CHF 69.21
Couldn't load pickup availability
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.213-40
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 2-1/2 inch |
|---|---|
| Outside Diameter D | 120mm |
| Overall Width Bi | 65.1mm |
| Inner Race Width Be | 30mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Front of Bearing to Centre Line m | 39.7mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 4480kg |
| Load Rating (Static) | 3470kg |
| Max Speed | 1400 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
