SKU: UC.215-48.TS.CHAL

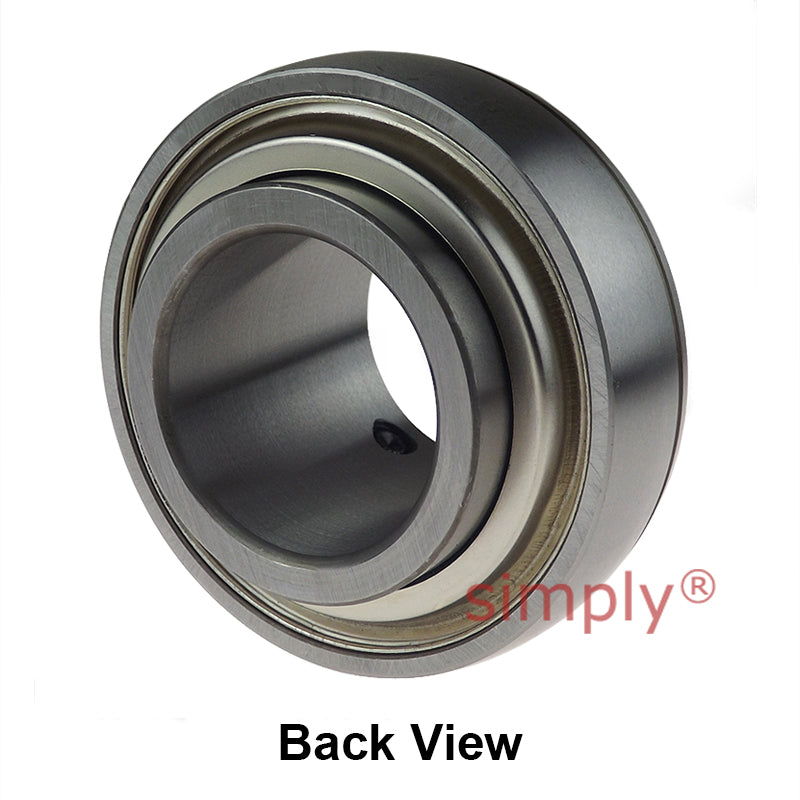

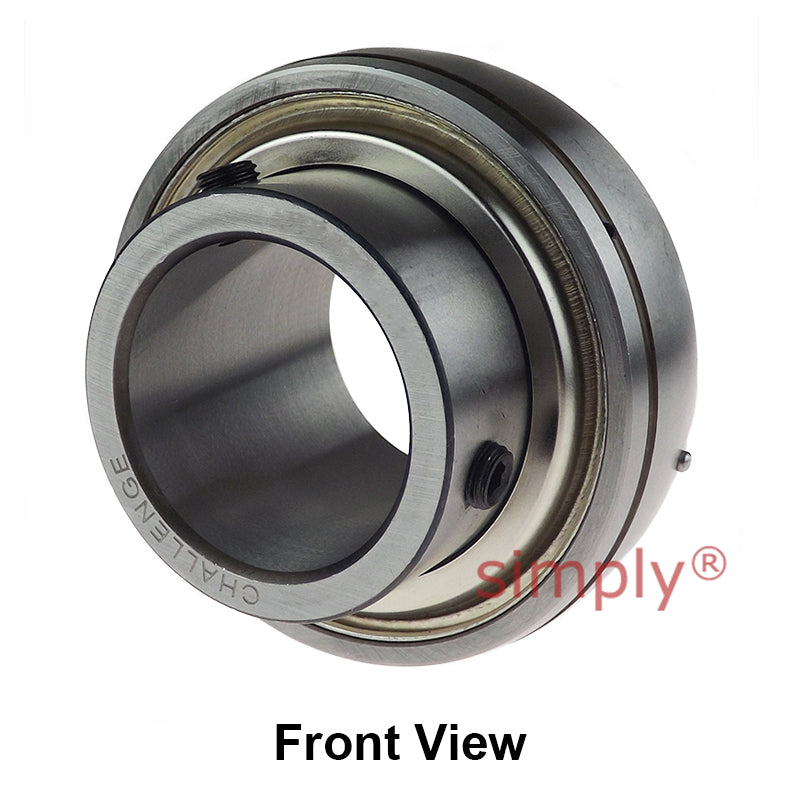

Challenge UC215-48 Imperial Insert with Grub Screws with 3 inch Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC215-48 Imperial Insert with Grub Screws with 3 inch Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 180.00
ex VAT
Regular price
Sale price
CHF 180.00
ex VAT
Equivalent to: UC.215-48
In stock
Price Break
3+
CHF 143.00
5+
CHF 134.97
9+
CHF 133.36
19+
CHF 131.75
49+
CHF 130.15
74+
CHF 128.54
99+
CHF 120.51
199+
CHF 118.90
249+
CHF 117.29
499+
CHF 115.68
999+
CHF 112.47
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.215-48
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 3 inch |
|---|---|
| Outside Diameter D | 130mm |
| Overall Width Bi | 77.8mm |
| Inner Race Width Be | 32mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Front of Bearing to Centre Line m | 44.5mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 7/16 - 20UNF inch |
| Load Rating (Dynamic) | 5190kg |
| Load Rating (Static) | 4190kg |
| Max Speed | 1200 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
