SKU: UC.216.TS.CHAL

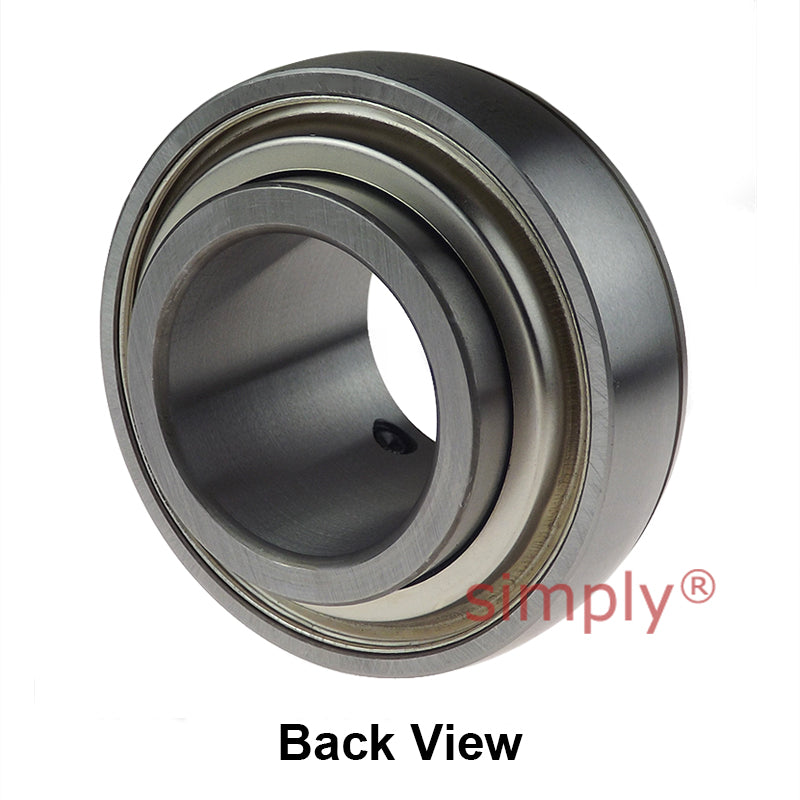

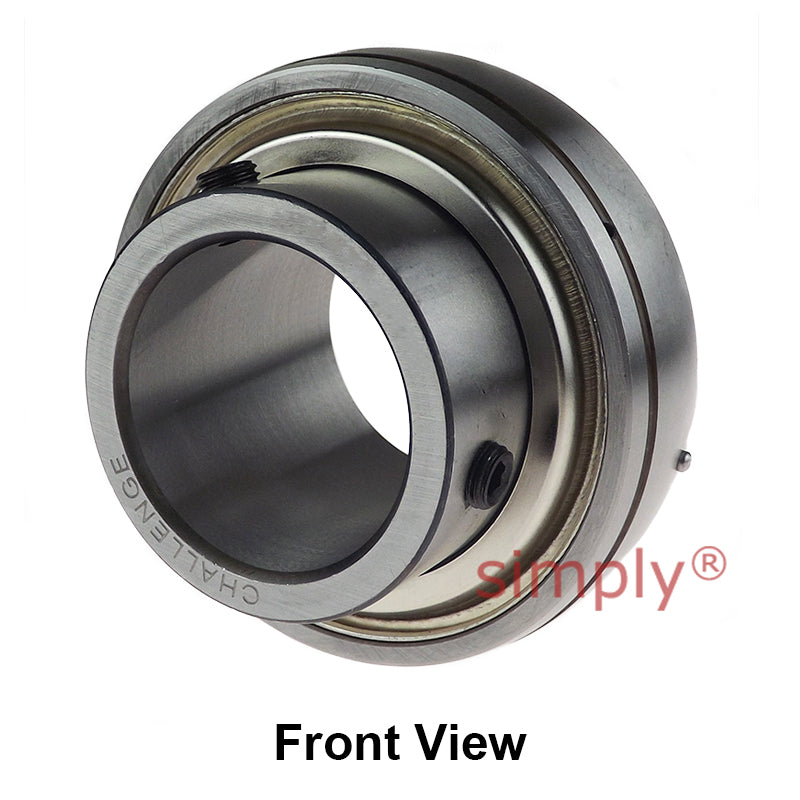

Challenge UC216 Metric Insert with Grub Screws with 80mm Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC216 Metric Insert with Grub Screws with 80mm Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 255.00
ex VAT
Regular price
Sale price
CHF 255.00
ex VAT
Equivalent to: UC.216
In stock
Price Break
3+
CHF 202.91
5+
CHF 191.51
9+
CHF 189.23
19+
CHF 186.95
49+
CHF 184.67
74+
CHF 182.39
99+
CHF 170.99
199+
CHF 168.71
249+
CHF 166.43
499+
CHF 164.15
999+
CHF 159.59
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.216
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 80mm
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 80mm |
|---|---|
| Outside Diameter D | 140mm |
| Overall Width Bi | 82.6mm |
| Inner Race Width Be | 33mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Front of Bearing to Centre Line m | 49.3mm |
| Dimension G | 12mm |
| Grub Screws x 2 | M12x1.50mm |
| Load Rating (Dynamic) | 5700kg |
| Load Rating (Static) | 4550kg |
| Max Speed | 1100 rev/min |
| Grease Nipple Thread Size | M10 |
| Working Temperature | -30°C to +120°C |
