SKU: UC.218-56.TS.CHAL

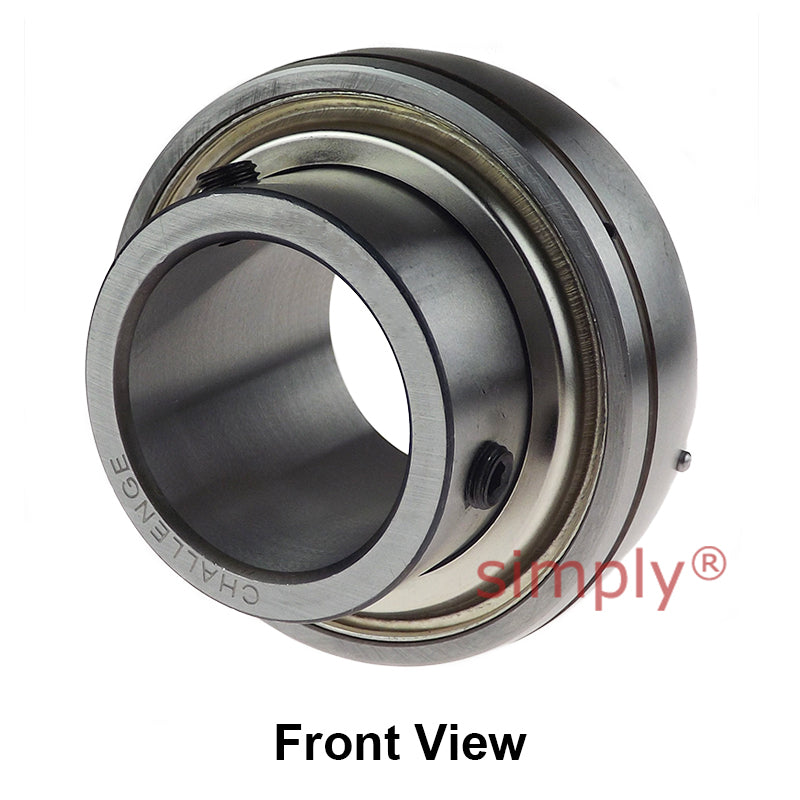

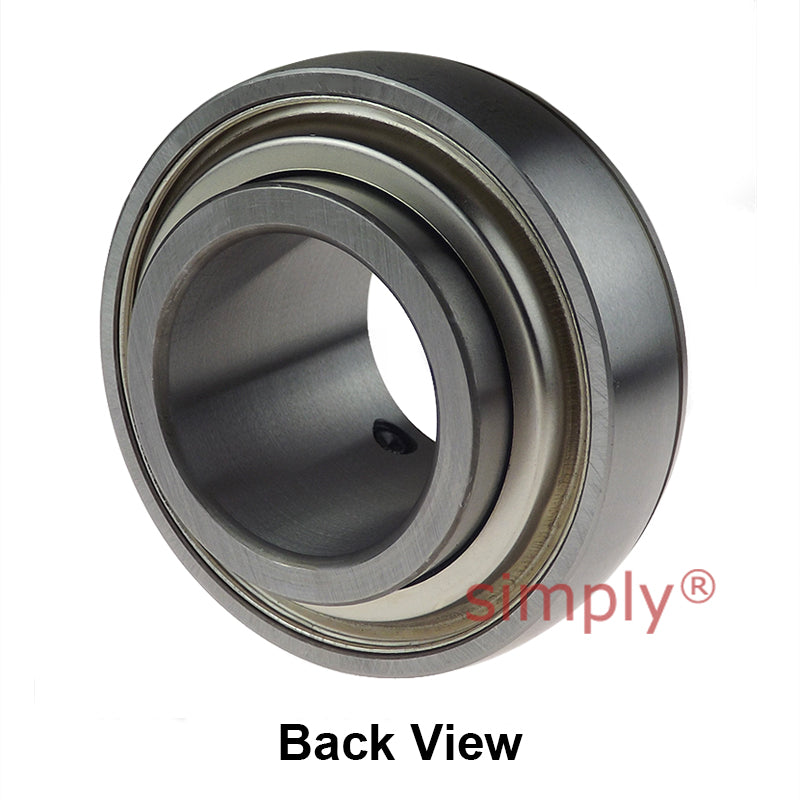

Challenge UC218-56 Imperial Insert with Grub Screws with 3-1/2 inch Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC218-56 Imperial Insert with Grub Screws with 3-1/2 inch Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 375.92
ex VAT
Regular price
Sale price
CHF 375.92
ex VAT
Equivalent to: UC.218-56
In stock
Price Break
10+
CHF 334.57
19+
CHF 315.77
29+
CHF 312.01
39+
CHF 308.25
49+
CHF 304.50
74+
CHF 300.74
99+
CHF 281.94
199+
CHF 278.18
249+
CHF 274.42
499+
CHF 270.66
999+
CHF 263.14
Couldn't load pickup availability
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.218-56
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 3-1/2 inch |
|---|---|
| Outside Diameter D | 160mm |
| Overall Width Bi | 96mm |
| Inner Race Width Be | 37mm |
| Back of Bearing to Centre Line n | 39.7mm |
| Front of Bearing to Centre Line m | 56.3mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 1/2 - 20UNF inch |
| Load Rating (Dynamic) | 7500kg |
| Load Rating (Static) | 6170kg |
| Max Speed | 950 rev/min |
| Grease Nipple Thread Size | M10 |
| Working Temperature | -30°C to +120°C |
