SKU: UC.218.TS.CHAL

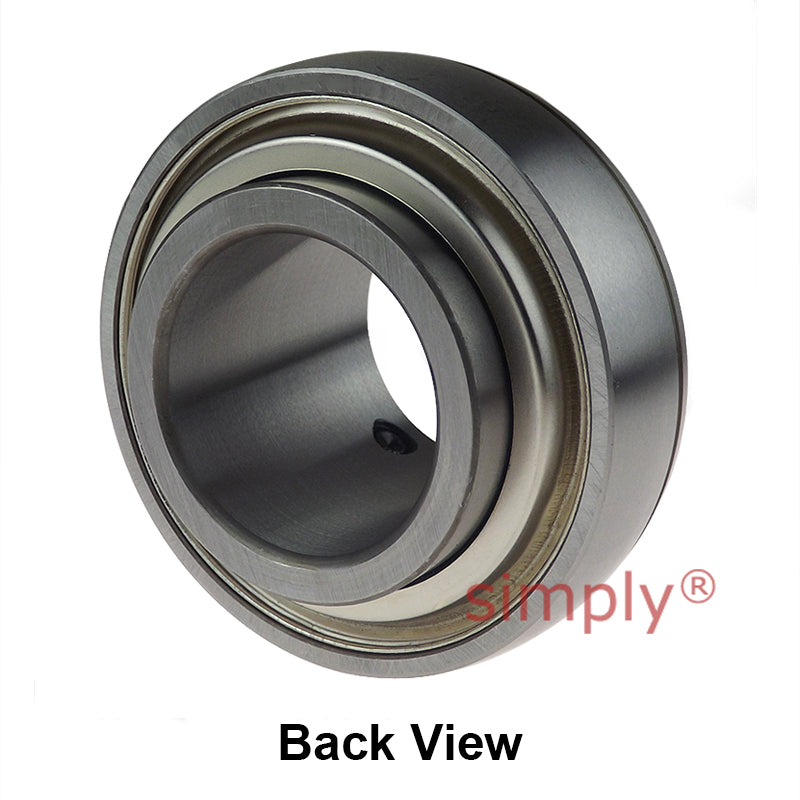

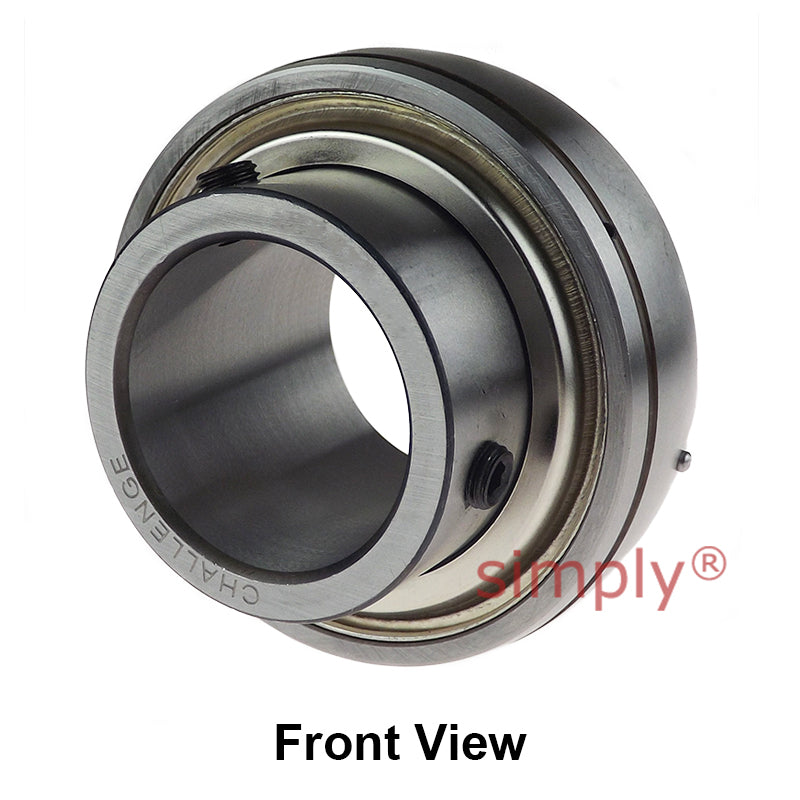

Challenge UC218 Metric Insert with Grub Screws with 90mm Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC218 Metric Insert with Grub Screws with 90mm Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 358.00
ex VAT
Regular price
Sale price
CHF 358.00
ex VAT
Equivalent to: UC.218
In stock
Price Break
3+
CHF 284.91
5+
CHF 268.91
9+
CHF 265.71
19+
CHF 262.50
49+
CHF 259.30
74+
CHF 256.10
99+
CHF 240.10
199+
CHF 236.89
249+
CHF 233.69
499+
CHF 230.49
999+
CHF 224.09
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.218
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 90mm
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 90mm |
|---|---|
| Outside Diameter D | 160mm |
| Overall Width Bi | 96mm |
| Inner Race Width Be | 37mm |
| Back of Bearing to Centre Line n | 39.7mm |
| Front of Bearing to Centre Line m | 56.3mm |
| Dimension G | 12mm |
| Load Rating (Dynamic) | 7500kg |
| Load Rating (Static) | 6170kg |
| Max Speed | 950 rev/min |
| Grease Nipple Thread Size | M10 |
| Working Temperature | -30°C to +120°C |
