SKU: UCC203-11

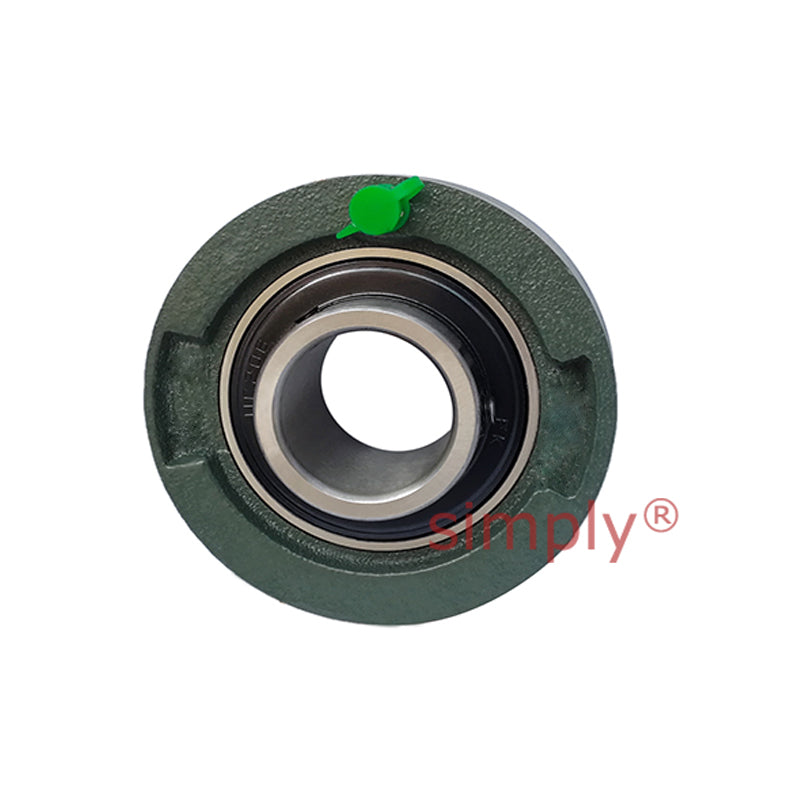

UCC203-11 Imperial Cast Iron Normal Duty Cartridge Unit with 11/16 inch Bore Insert 2.8346 inch Outside Dia
UCC203-11 Imperial Cast Iron Normal Duty Cartridge Unit with 11/16 inch Bore Insert 2.8346 inch Outside Dia
Regular price
CHF 15.60
ex VAT
Regular price
Sale price
CHF 15.60
ex VAT
In stock
Price Break
10+
CHF 13.88
19+
CHF 13.10
29+
CHF 12.95
39+
CHF 12.79
49+
CHF 12.64
74+
CHF 12.48
99+
CHF 11.70
199+
CHF 11.54
249+
CHF 11.39
499+
CHF 11.23
999+
CHF 10.92
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Outside Diameter:
- 71.999mm = 2.8346 inch
- Style:
- UCC

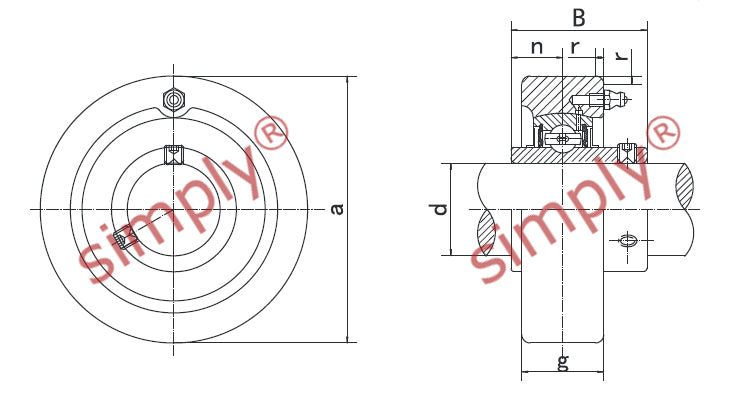

Technical
Technical
| Bore d | 11/16 inch |
|---|---|
| Outer Dia a | 2.8346 inch |
| g | 25/32 inch |
| r | 0.079 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bearing No | UC203-11 |
| Housing No | C204 |
