SKU: UCC205-14

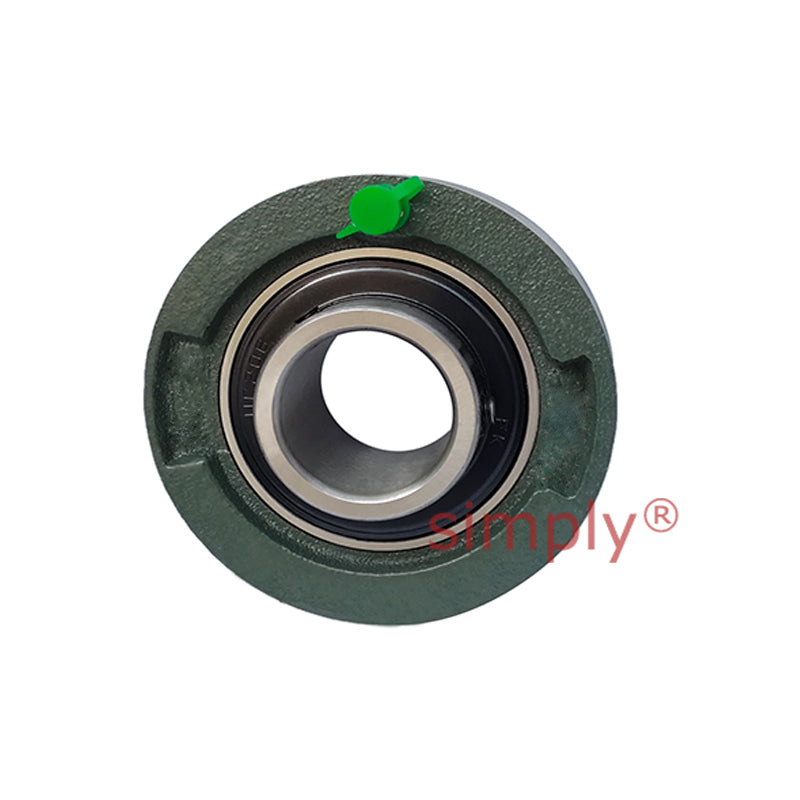

UCC205-14 Imperial Cast Iron Normal Duty Cartridge Unit with 7/8 inch Bore Insert 3.1496 inch Outside Dia
UCC205-14 Imperial Cast Iron Normal Duty Cartridge Unit with 7/8 inch Bore Insert 3.1496 inch Outside Dia
Regular price
CHF 21.55
ex VAT
Regular price
Sale price
CHF 21.55
ex VAT
In stock
Price Break
10+
CHF 19.18
19+
CHF 18.10
29+
CHF 17.89
39+
CHF 17.67
49+
CHF 17.46
74+
CHF 17.24
99+
CHF 16.16
199+
CHF 15.95
249+
CHF 15.73
499+
CHF 15.52
999+
CHF 15.09
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 80mm = 3.1496 inch
- Style:
- UCC
Technical
Technical
| Bore d | 7/8 inch |
|---|---|
| Outer Dia a | 3.1496 inch |
| g | 55/65 inch |
| r | 0.079 inch |
| B | 1.3425 inch |
| n | 0.563 inch |
| Bearing No | UC205-14 UC20S-1S |
| Housing No | C205 |
