SKU: UCC207-21

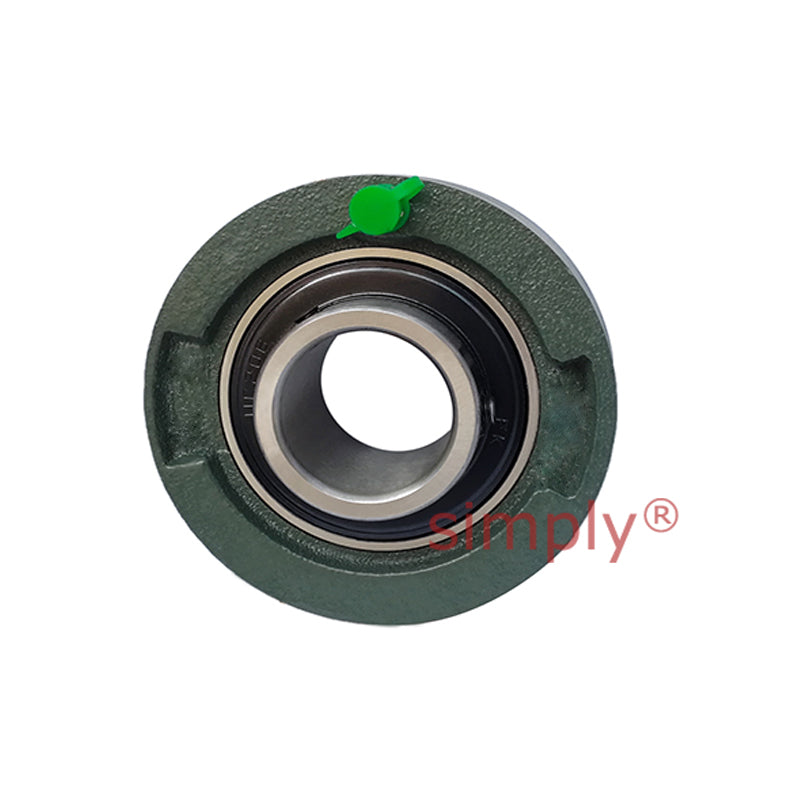

UCC207-21 Imperial Cast Iron Normal Duty Cartridge Unit with 1-5/16 inch Bore Insert 3.5433 inch Outside Dia
UCC207-21 Imperial Cast Iron Normal Duty Cartridge Unit with 1-5/16 inch Bore Insert 3.5433 inch Outside Dia
Regular price
CHF 28.74
ex VAT
Regular price
Sale price
CHF 28.74
ex VAT
In stock
Price Break
10+
CHF 25.58
19+
CHF 24.14
29+
CHF 23.85
39+
CHF 23.57
49+
CHF 23.28
74+
CHF 22.99
99+
CHF 21.56
199+
CHF 21.27
249+
CHF 20.98
499+
CHF 20.69
999+
CHF 20.12
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Outside Diameter:
- 90mm = 3.5433 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-5/16 inch |
|---|---|
| Outer Dia a | 3.5433 inch |
| g | 1-7/64 inch |
| r | 0.079 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bearing No | UC207-21 |
| Housing No | C207 |
