SKU: UCC209-26

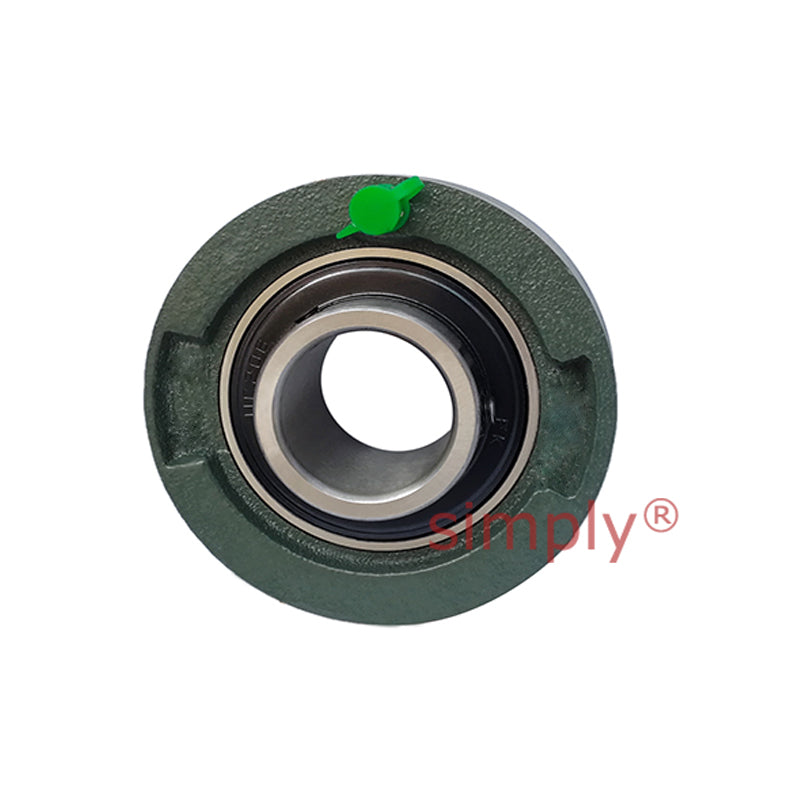

UCC209-26 Imperial Cast Iron Normal Duty Cartridge Unit with 1-5/8 inch Bore Insert 4.3307 inch Outside Dia
UCC209-26 Imperial Cast Iron Normal Duty Cartridge Unit with 1-5/8 inch Bore Insert 4.3307 inch Outside Dia
Regular price
CHF 31.24
ex VAT
Regular price
Sale price
CHF 31.24
ex VAT
In stock
Price Break
10+
CHF 27.80
19+
CHF 26.24
29+
CHF 25.93
39+
CHF 25.62
49+
CHF 25.30
74+
CHF 24.99
99+
CHF 23.43
199+
CHF 23.12
249+
CHF 22.81
499+
CHF 22.49
999+
CHF 21.87
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 110mm = 4.3307 inch
- Style:
- UCC
Technical
Technical
| Bore d | 1-5/8 inch |
|---|---|
| Outer Dia a | 4.3307 inch |
| g | 1-7/32 inch |
| r | 0.098 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bearing No | UC20B-26 |
| Housing No | C209 |
