SKU: UCC213D1-NTN

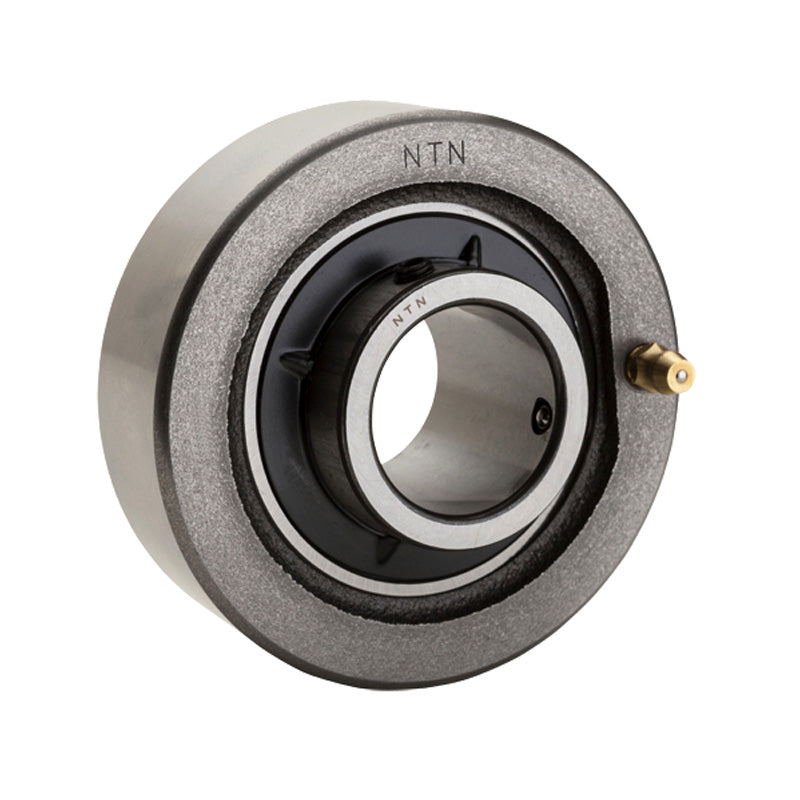

NTN UCC213D1 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
NTN UCC213D1 Metric Cast Iron Cartridge Unit with 65mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
Regular price
CHF 124.31
ex VAT
Regular price
Sale price
CHF 124.31
ex VAT
In stock
Price Break
5+
CHF 123.07
10+
CHF 118.09
20+
CHF 115.61
50+
CHF 111.88
100+
CHF 109.39
500+
CHF 103.18
1000+
CHF 87.02
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 65mm |
|---|---|
| H | 140mm |
| A | 40mm |
| r | 3mm |
| B | 65.1mm |
| S | 25.4mm |
| Mass | 3 kg |
