SKU: UCC310D1-NTN

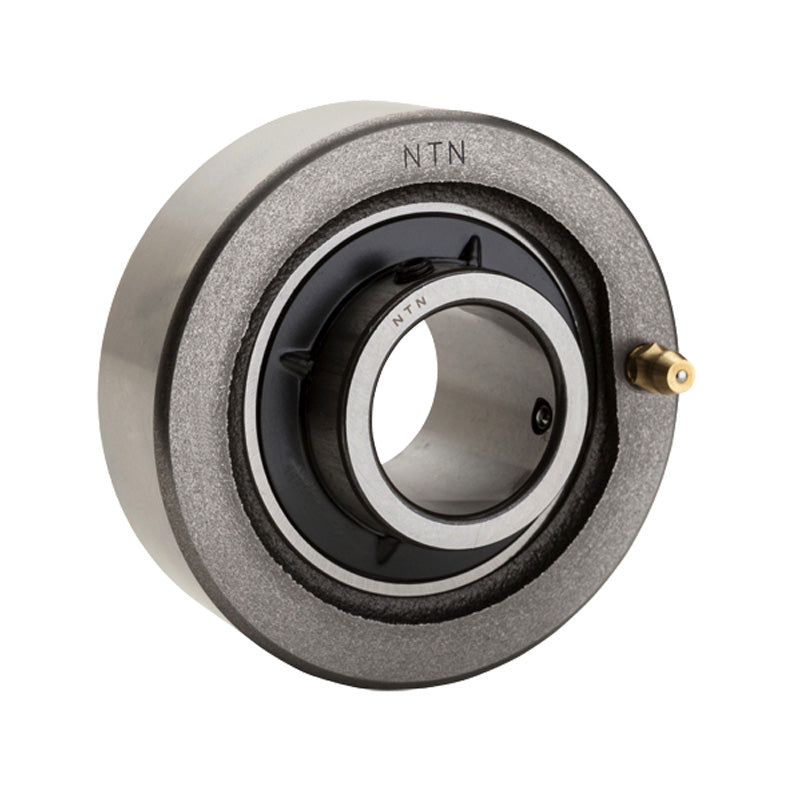

NTN UCC310D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
NTN UCC310D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 140mm Outside Dia - Allow 2-3 Days
Regular price
CHF 92.80
ex VAT
Regular price
Sale price
CHF 92.80
ex VAT
In stock
Price Break
10+
CHF 82.59
19+
CHF 77.95
29+
CHF 77.02
39+
CHF 76.10
49+
CHF 75.17
74+
CHF 74.24
99+
CHF 69.60
199+
CHF 68.67
249+
CHF 67.74
499+
CHF 66.82
999+
CHF 64.96
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 140mm |
| A | 40mm |
| r | 3.5mm |
| B | 61mm |
| S | 22mm |
| Mass | 3.3 kg |
