SKU: UCC316D1-NTN

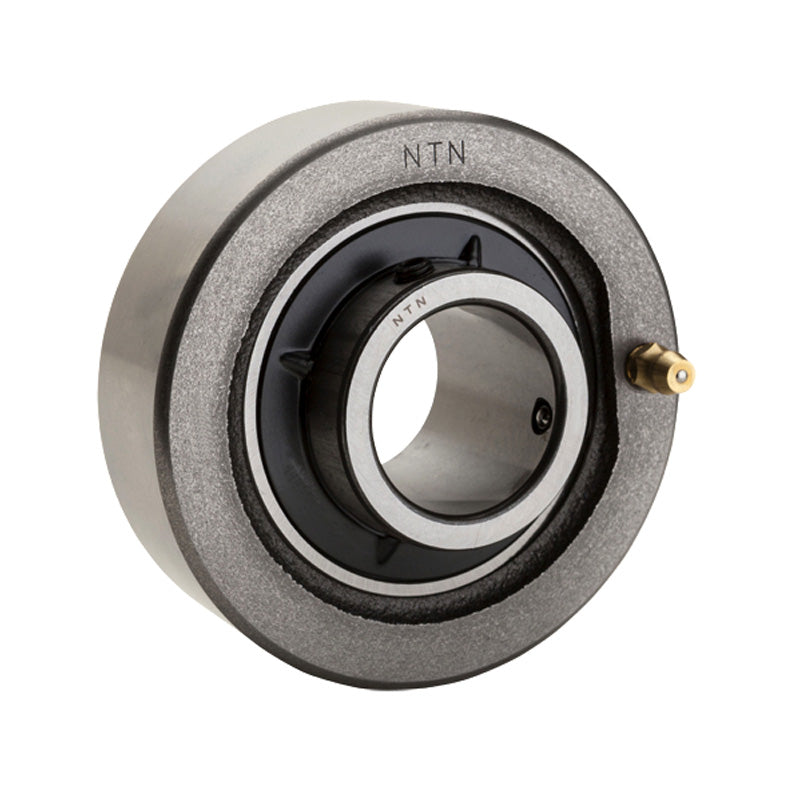

NTN UCC316D1 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 200mm Outside Dia - Allow 2-3 Days
NTN UCC316D1 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 200mm Outside Dia - Allow 2-3 Days
Regular price
CHF 373.01
ex VAT
Regular price
Sale price
CHF 373.01
ex VAT
In stock
Price Break
5+
CHF 369.28
10+
CHF 354.36
20+
CHF 346.90
50+
CHF 335.71
100+
CHF 328.25
500+
CHF 309.60
1000+
CHF 261.11
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 80mm |
|---|---|
| H | 200mm |
| A | 60mm |
| r | 4mm |
| B | 86mm |
| S | 34mm |
| Mass | 9.3 kg |
